FlowSource
Library
HydraulicsByFluidon/Components/Sources
Description
The component FlowSource provides a constant volume flow. The resulting mass flow at fluidPort depends the calculated density.

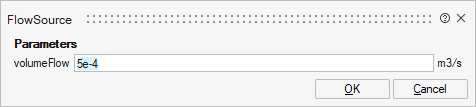

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_volumeFlow | volumeFlow | Volume flow | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
fluidPort | implicit | Hydraulic port | input | 1 |
