VolumeExt

    VolumeExt

Library

HydraulicsByFluidon/Components/Volumes

Description

Model of a simple hydraulic capacity with consideration of surrounding housing. It can be used to represent the volume of adjacent components that lack any spatial expansion, e. g. the IdealResistor component. The temporal change rate of pressure equals the net mass flow into the capacity.

The capacity C used to calculate the rate of pressure change takes into account the compression modulus of the fluid and the Young's modulus of the housing.

Parameters

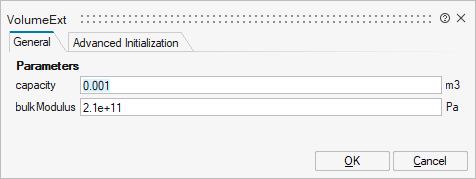

VolumeExt_0

NameLabelDescriptionData TypeValid Values

mo_capacity

capacity

Size of the volume

Scalar

mo_bulkModulus

bulkModulus

Bulk modulus housing

Scalar

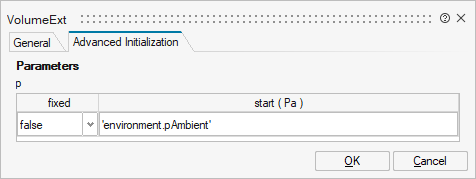

VolumeExt_1

NameLabelDescriptionData TypeValid Values

mo_p

p

p

Structure

mo_p/fixed

fixed

Cell of scalars

true
false

mo_p/start

start

Cell of scalars

Ports

NameTypeDescriptionIO TypeNumber

fluidPort

implicit

Hydraulic port

input

1
