LogicToX01Z
Conversion to X01Z
Library
Modelica/Electrical/Digital/Converters
Description
Conversion of a nine valued digital input into a X01Z digital output without any delay according to IEEE 1164 To_X01Z function.
Conversion Table:
input output 'U' (coded by 1) 'X' (coded by 2) 'X' (coded by 2) 'X' (coded by 2) '0' (coded by 3) '0' (coded by 3) '1' (coded by 4) '1' (coded by 4) 'Z' (coded by 5) 'Z' (coded by 5) 'W' (coded by 6) 'X' (coded by 2) 'L' (coded by 7) '0' (coded by 3) 'H' (coded by 8) '1' (coded by 4) '-' (coded by 9) 'X' (coded by 2)
If the signal width is greater than 1 this conversion is done for each signal.

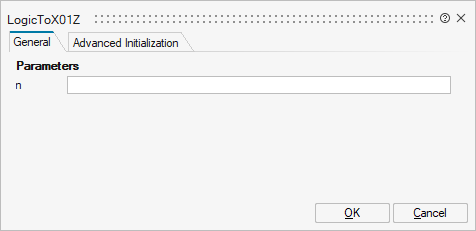

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_n | n | signal width | Scalar |

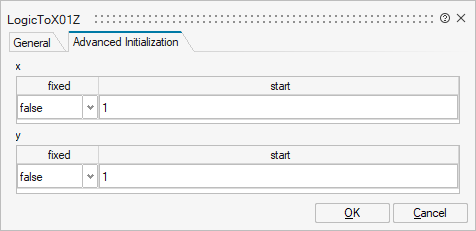

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_x | x | x | Structure | |
mo_x/fixed | fixed | Cell of vectors | true | |
mo_x/start | start | Cell of vectors | ||
mo_y | y | y | Structure | |
mo_y/fixed | fixed | Cell of vectors | true | |
mo_y/start | start | Cell of vectors |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
x | implicit | input | 1 | |
y | implicit | output | 1 |
