ThermalPortAIMS
Thermal port of asynchronous induction machine with slipring
Library
Modelica/Electrical/Machines/Interfaces/InductionMachines
Description

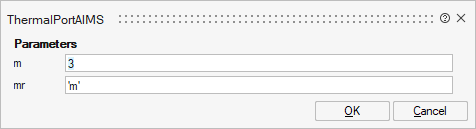

Thermal port for asynchronous induction machine with slipring rotorParameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of stator phases | Scalar | |
mo_mr | mr | Number of rotor phases | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | implicit | Thermal port of asynchronous induction machine with slipring | output | 1 |
