ThermalPortSMEE
Thermal port of synchronous induction machine with electrical excitation
Library
Modelica/Electrical/Machines/Interfaces/InductionMachines
Description

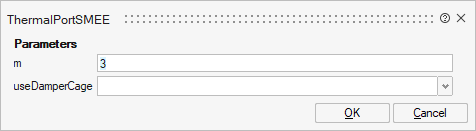

Thermal port for synchronous induction machine with electrical excitationParameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of stator phases | Scalar | |
mo_useDamperCage | useDamperCage | Enable / disable damper cage | Scalar | true |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | implicit | Thermal port of synchronous induction machine with electrical excitation | output | 1 |
