Star
Star-connection
Library
Modelica/Electrical/MultiPhase/Basic
Description
Connects all pins of plug_p to pin_n, thus establishing a so-called star-connection.
See also

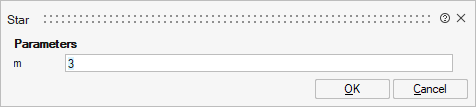

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_p | implicit | input | 1 | |
pin_n | implicit | output | 1 |
