NegativePlug
Negative polyphase electrical plug with m pins
Library
Modelica/Electrical/MultiPhase/Interfaces
Description
Connectors PositivePlug and NegativePlug are nearly identical.
The only difference is that the icons are different in order
to identify more easily the plugs of a component.
Usually, connector PositivePlug is used for the positive and
connector NegativePlug for the negative plug of an electrical component.
Connector Plug is a composite connector containing m Pins (Modelica.Electrical.Analog.Interfaces.Pin).

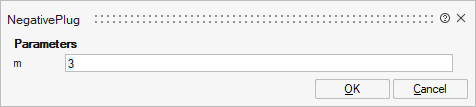

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
Port 1 | implicit | Negative polyphase electrical plug with m pins | output | 1 |
