DiodeCenterTap2Pulse
Two pulse diode rectifier with center tap
Library
Modelica/Electrical/PowerConverters/ACDC
Description
General information about AC/DC converters can be found at the AC/DC converter concept
This is a two pulse diode rectifier with center tap. In order to operate this rectifier a voltage with center tap is required. The center tap has to be connected with the negative pin of the load. The circuit topology is the same as in Examples.ACDC.RectifierCenterTap2Pulse.

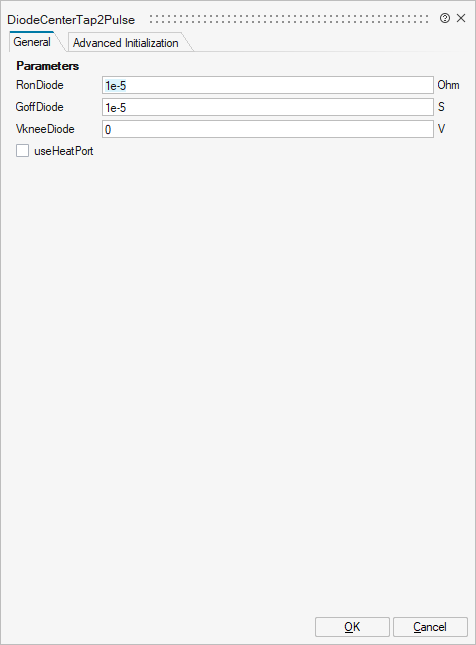

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_RonDiode | RonDiode | Closed diode resistance | Scalar | |
mo_GoffDiode | GoffDiode | Opened diode conductance | Scalar | |
mo_VkneeDiode | VkneeDiode | Diode forward threshold voltage | Scalar | |
mo_useHeatPort | useHeatPort | =true, if heatPort is enabled | Number | 0 |
mo_T | T | Fixed device temperature if useHeatPort = false | Scalar |

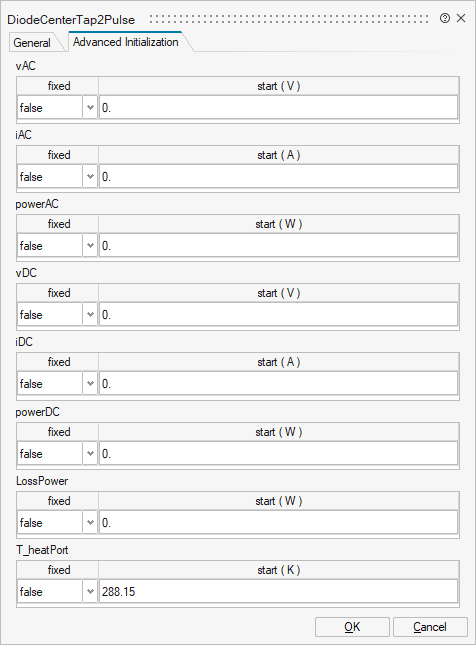

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_vAC | vAC | vAC | Structure | |
mo_vAC/fixed | fixed | Cell of scalars | true | |
mo_vAC/start | start | Cell of scalars | ||
mo_iAC | iAC | iAC | Structure | |
mo_iAC/fixed | fixed | Cell of scalars | true | |
mo_iAC/start | start | Cell of scalars | ||
mo_powerAC | powerAC | powerAC | Structure | |
mo_powerAC/fixed | fixed | Cell of scalars | true | |
mo_powerAC/start | start | Cell of scalars | ||
mo_vDC | vDC | vDC | Structure | |
mo_vDC/fixed | fixed | Cell of scalars | true | |
mo_vDC/start | start | Cell of scalars | ||
mo_iDC | iDC | iDC | Structure | |
mo_iDC/fixed | fixed | Cell of scalars | true | |
mo_iDC/start | start | Cell of scalars | ||
mo_powerDC | powerDC | powerDC | Structure | |
mo_powerDC/fixed | fixed | Cell of scalars | true | |
mo_powerDC/start | start | Cell of scalars | ||
mo_LossPower | LossPower | LossPower | Structure | |
mo_LossPower/fixed | fixed | Cell of scalars | true | |
mo_LossPower/start | start | Cell of scalars | ||
mo_T_heatPort | T_heatPort | T_heatPort | Structure | |
mo_T_heatPort/fixed | fixed | Cell of scalars | true | |
mo_T_heatPort/start | start | Cell of scalars |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
ac_p | implicit | Positive AC input | input | 1 |
ac_n | implicit | Negative AC input | output | 1 |
dc_p | implicit | Positive DC output | input | 2 |
Port 4 | implicit | Conditional heat port | input | mo_useHeatPort |
