Star
Star connection
Library
Modelica/Electrical/QuasiStationary/MultiPhase/Basic
Description
Star (wye) connection of a multi phase circuit. The potentials at the star points are the same.
See also

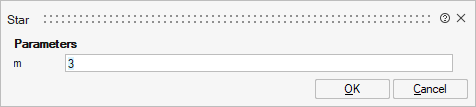

Parameters
| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_m | m | Number of phases | Scalar |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
plug_p | implicit | input | 1 | |
pin_n | implicit | output | 1 |
