ConstantMagneticFlux
Source of constant magnetic flux
Library
Modelica/Magnetic/FluxTubes/Sources
Description
Sources of a constant magnetic flux are useful for modelling of permanent magnets with Norton's magnetic equivalent circuit.
Parameters

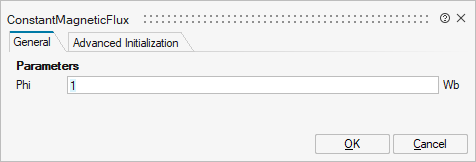

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_Phi | Phi | Magnetic flux | Scalar |

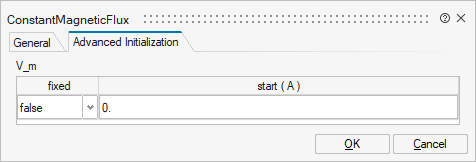

| Name | Label | Description | Data Type | Valid Values |
|---|---|---|---|---|
mo_V_m | V_m | V_m | Structure | |
mo_V_m/fixed | fixed | Cell of scalars | true | |
mo_V_m/start | start | Cell of scalars |
Ports
| Name | Type | Description | IO Type | Number |
|---|---|---|---|---|
port_p | implicit | Positive magnetic port | input | 1 |
port_n | implicit | Negative magnetic port | output | 1 |
