Refining the Mesh Adaptively Using AMRFEKO

Refine the mesh adaptively using AMRFEKO.

Note: Specify the AMRFEKO settings on the Component Launch Options dialog.
  1. Open and save a model whose mesh will be refined adaptively.
  2. On the Solve/Run tab, in the Run/Launch group, click the  AMRFEKO icon.

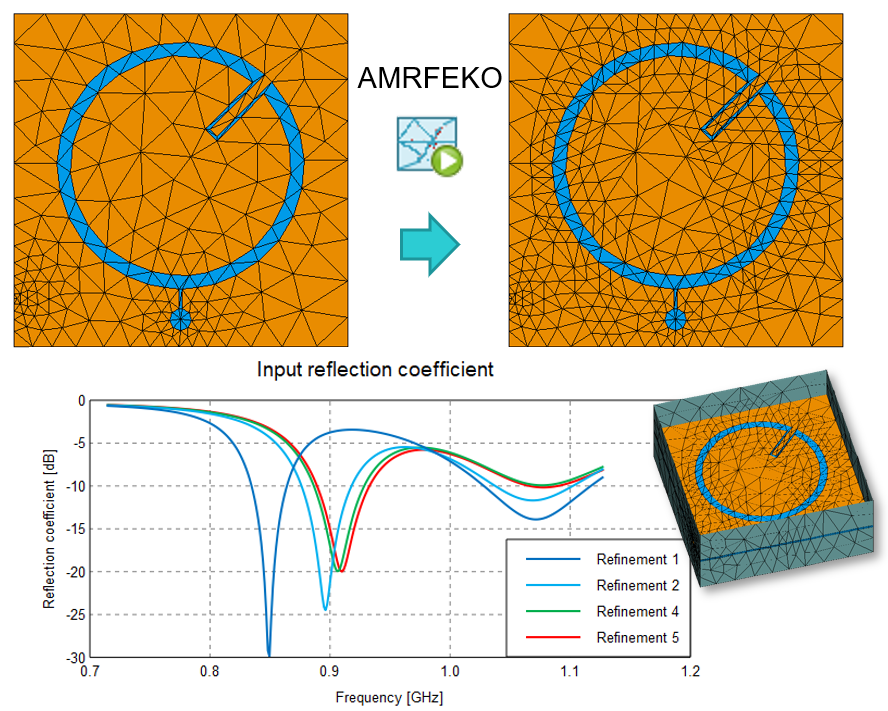

Figure 1. An example of a slot antenna whose mesh was refined using AMRFEKO.

For each adaptive mesh refinement iteration, the Solver is run. After the final adaptive mesh refinement is reached, the refined model is saved. If a .cfx file was provided, the refined model is saved as <model>_refined.cfx.

AMRFEKO can also be run on an EDITFEKO model (.pre file) or a .fek file. When there is no .cfx file present, the refined model is saved as <model>_fek_refined.fek.
