SM WF ISP IR 3PH

Wound Field Synchronous Machines - Inner Salient Pole - InnerRotor

Home page view

The Motor Factory – DESIGN area is the first environment of the Motor Factory.

For a synchronous machine with wound field inner salient poles, it is composed of four main zones. This is the guideline for designing your machine.

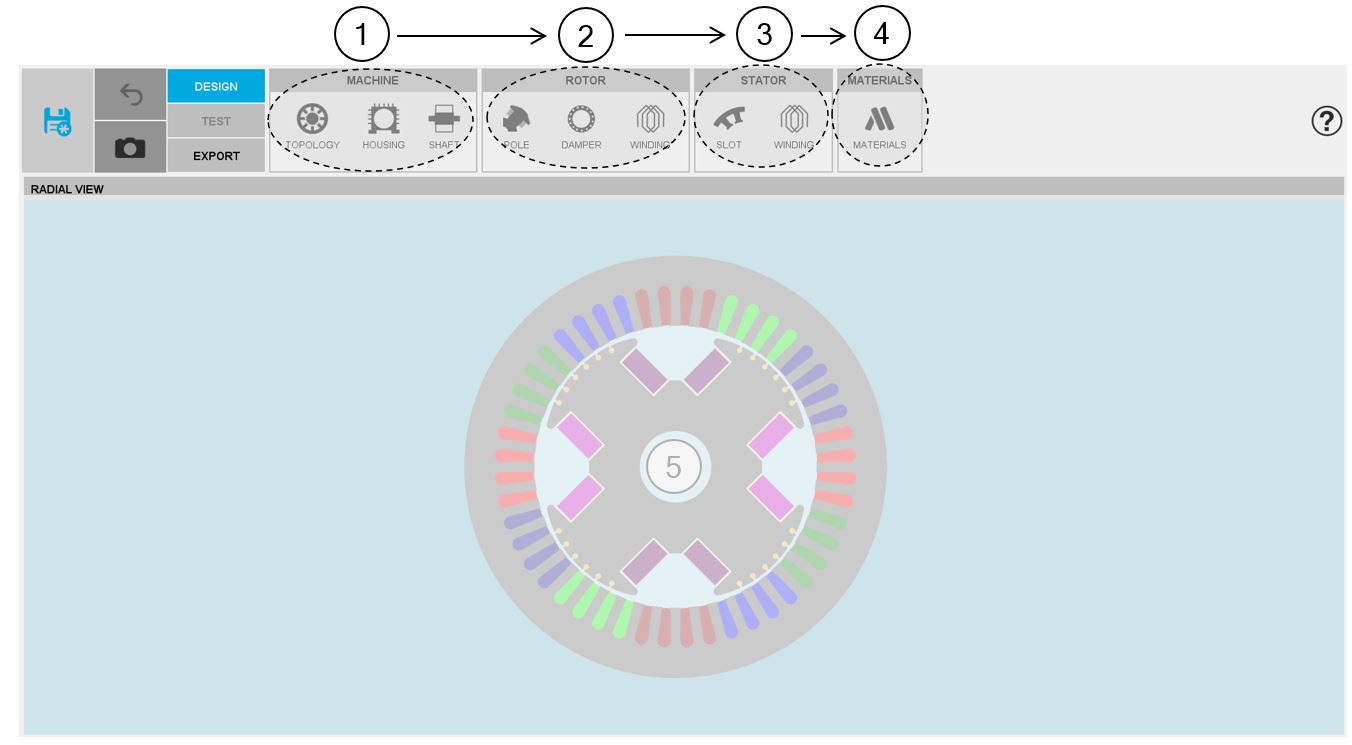

Motor Factory – DESIGN area view – Example for synchronous machine with wound field, inner salient pole, and inner rotor
Zone 1 MACHINE
Definition of general data of the machine depending on the considered type of machine
  • Topology with overall dimensions, No. slots, No. poles,
  • Housing, Frame and dimensions
  • Shaft type, and dimensions
Zone 2 ROTOR
Access to the main functions to design the ROTOR mainly defined by:
  • Pole
  • Damper
  • Winding
Zone 3 STATOR
Access to the main functions to design the STATOR and its corresponding subsets:
  • Slot
  • Winding
Zone 4 MATERIALS Area to select all the materials required to build the machine, the rotor, and the stator
Zone 5 VIEW
Visualization of the motor radial view. The winding (automatically defined) is shown.
Note: Graphic functions like export picture and zoom are available in this view by right-clicking on mouse (right part of the panel).See system functions, graphic management to get more information.
