Settings

Three buttons give access to the following setting definition:
  • Temperature of active components: winding and squirrel cage
  • Definition of the power electronics parameters

    Inverter control strategy

    Inputs for evaluating the power electronics stage losses

  • Definition of mechanical loss model parameters

    For more details, please refer to the document: MotorFactory_2023.1_IMSQ_IOR_3PH_Test_Introduction.

  • Import
    Provide the ability to import the current inputs and results from the test “Performance mapping – Sine wave – Motor – Efficiency map scalar”. This will save the computation time related to the identification of the non-linear model, in other word, save the computation time related to the finite element solving which generally represent the main part of the computation time of the test.

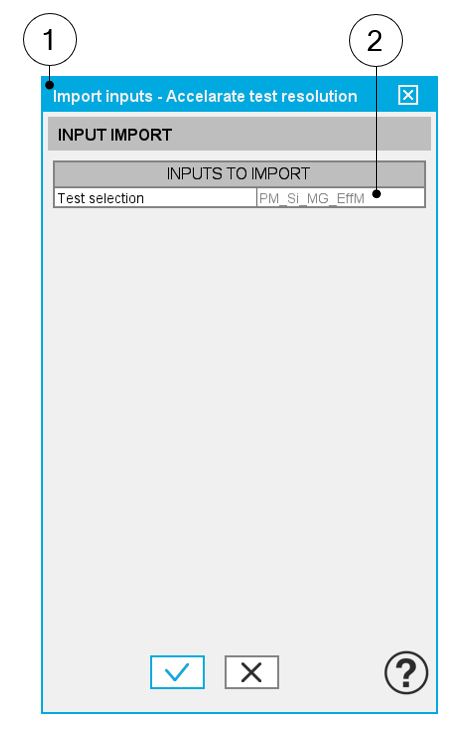

    1 Import inputs – Accelerate test resolution
    2 Current results from test “Performance mapping – Sine wave – Motor – Efficiency map scalar”
