Extrude lines

To extrude lines:

Step	Action
1	Activate the Extrude lines command (see next block)
→	An Extrude lines dialog box is opened.
2	Define the extrusion: choose a transformation enter the number of the successive executions of the transformation choose a building option click on OK
→	New entities are added in the Flux PEEC project according the chosen building option.
→	An Extrude lines dialog box is opened.
3	Go on extrusion: go to step 2	Quit the sequence of extrusion: click on Cancel

Activate the command

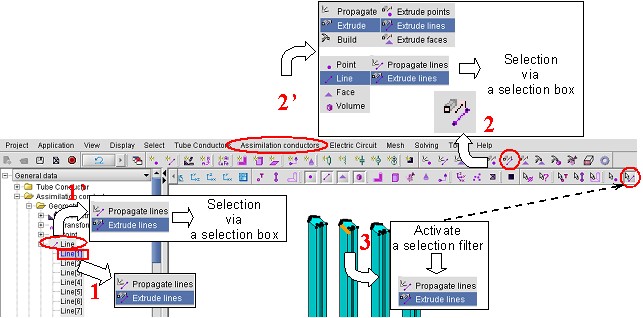

To activate the Extrude lines command, which requires data selection , choose one of the methods presented in the figure below:

Remember: To open a contextual menu, use the right button of the mouse. For multiple selections, keep the Ctrl key pressed.
