SimLab Tutorial Summary: 3D Streamer in an Insulator
Description
The studied device is an insulator separating two conductors, one at high potential, and another one grounded. The device is in the air.
The aim is to study ionized canals propagation (Streamers propagation) with "Streamer Criterion" Load.

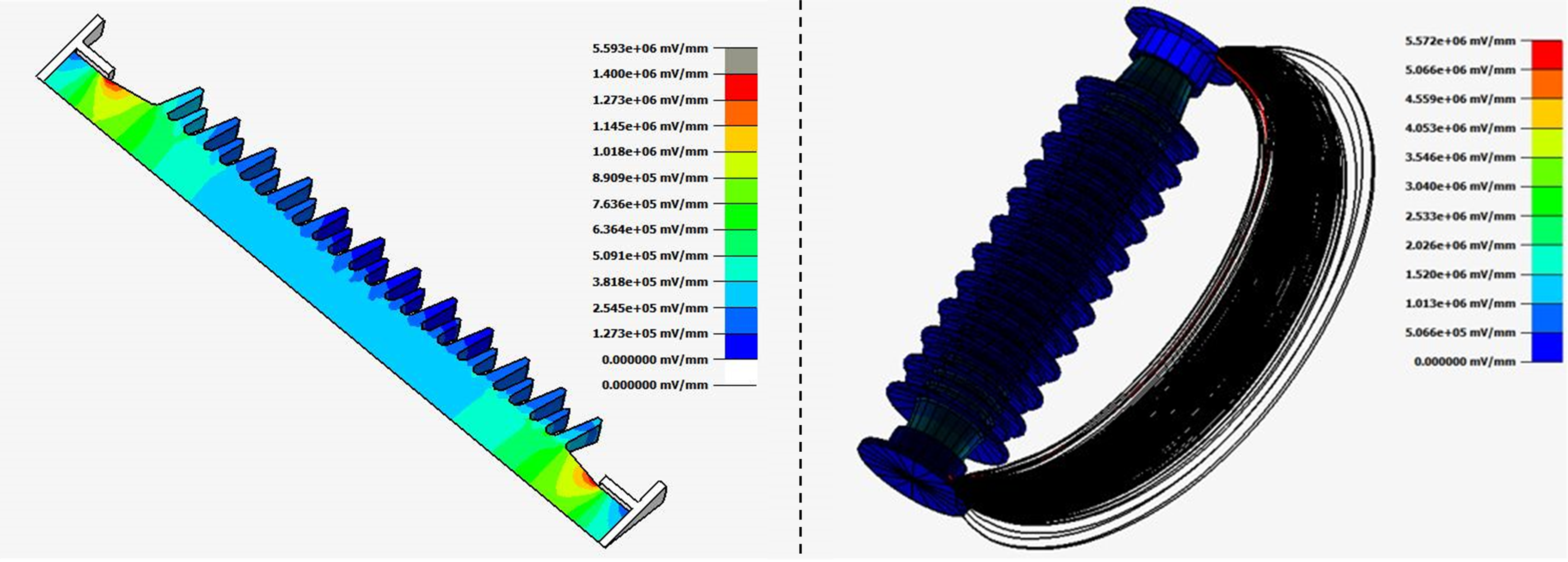

Analysis 1: Streamers propagation
The Streamer criterion tool is used for:
- Global computation: all ionized canals which can propagate from the selected surface and for the project potentials difference, are displayed. The Streamer having the highest probability to propagate and possibly leading to a breakdown (minimal Streamer inception voltage) is displayed in red. The computation results (numerical values and curves) correspond to this Streamer.
- Local computation: the Streamer going from the selected point is displayed. The results including the Streamer inception voltage are created
Example access
All files corresponding to this example are accessible in the Knowledge Base in Altair community:
- to follow the example step by step, the corresponding files are in
"Example_name_StepByStep" folder containing:
- Tutorial folder: contains the document describing the example step by step
- InitialFiles folder: contains *.slb databases and files needed to build the example step by step
- to play scripts and retrieve SimLab and Flux project, the corresponding files
are in "Example_name_PlayScripts" folder containing:
- ScriptsTutorial folder: contains script files to be able to play each analysis
- Input folder: contains initial *.slb databases and all necessary files to play each analysis script
- Output folder: empty (contains the obtained results after the script execution)
