Laminar Poiseuille Flow Through a Pipe

In this application, AcuSolve is used to simulate the flow of carbon dioxide (CO2) entering a pipe with a fixed velocity. AcuSolve results are compared with analytical results using the Hagen-Poiseuille approach as described in White (1991). The close agreement of AcuSolve results with analytical results validates the ability of AcuSolve to model cases with constant flow velocity.

Problem Description

The problem consists of CO2 flowing through a circular pipe 0.0025 m in diameter and 0.01 m long, as shown in the following image, which is not drawn to scale. The CO2 enters the pipe with an average inlet velocity of 3.0 m/s. The flow field develops as a result of the viscous shearing on the fluid at the pipe wall.

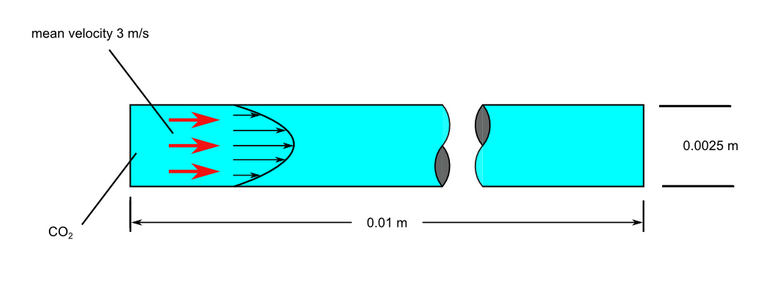

Figure 1. Critical Dimensions and Parameters for Simulating Laminar Poiseuille Flow Through a Pipe

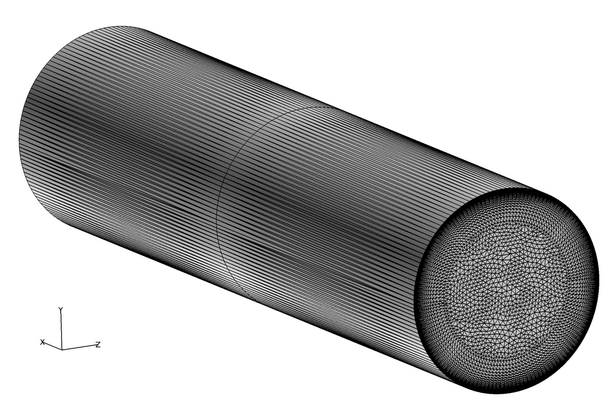

Figure 2. Mesh Used for Simulating Laminar Poiseuille Flow Through a Pipe

AcuSolve Results

The AcuSolve solution converged to a steady state and the results reflect the mean flow conditions. The pressure decreases along the length of the pipe.

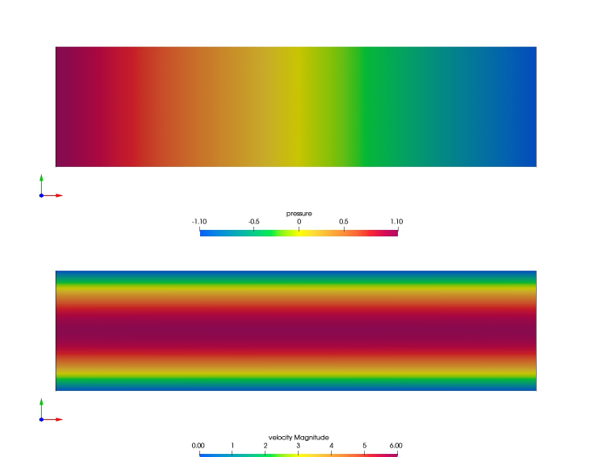

Figure 3. Pressure Contours and Velocity Magnitude Vectors
The analytical pressure drop between the inlet and the outlet is presented with the corresponding AcuSolve result in the following table.
Table 1.
  Analytical pressure drop (Pa) AcuSolve pressure drop (Pa) Percent deviation from analytical
Inlet to outlet pressure drop 2.242 2.245 0.099

Summary

The AcuSolve solution compares well with analytical results for laminar flow through a pipe. In this application, the pressure drop along the length of the pipe is caused by the viscous shearing near the pipe wall. The AcuSolve steady state solution compares well with the analytical solution, with less than 0.1 percent error. The computation cost of the solution is reduced significantly due to the use of extruded elements in the streamwise direction and the fully established flow profile that is assigned.

Simulation Settings for Laminar Poiseuille Flow Through a Pipe

SimLab database file: <your working directory>\pipe_laminar\pipe_laminar.slb

Global

  • Problem Description
    • Flow Type - Steady State
    • Turbulence - Laminar
  • Auto Solution Strategy
    • Relaxation factor - 0.2
  • Material Model
    • CO2
      • Density 1.808 kg/m3
      • Viscosity 1.46e-5 kg/m-sec

    Model

  • Volumes
    • Fluid
      • Element Set
        • Material Model - CO2
  • Surfaces
    • Inflow
      • Simple Boundary Condition - (disabled to allow for periodic conditions to be set)
      • Advanced Options
        • Integrated Boundary Conditions
          • Mass Flux
            • Type - Constant
            • Constant value - -2.6625e-05 kg/sec
    • Outflow
      • Simple Boundary Condition - (disabled to allow for periodic conditions to be set)
    • Wall
      • Simple Boundary Condition
        • Type - Wall
  • Periodics
    • Periodic 1
      • Individual Periodic BCs
        • Velocity
          • Type - Periodic
        • Pressure
          • Type - Single Unknown Offset

References

F. M. White. "Viscous Fluid Flow". Section 3-2.1. McGraw-Hill Book Co., Inc.. New York. 1991.
