Advices for use

  • The number of slots can be chosen over the range [3, 2400].
  • The number of poles can be chosen over the range [2, 400].
  • The number of phases can be chosen over the range [3,15] in case of polyphase machines. Only odd values are considered.
Note: Our process for building and computations has been qualified over the following data ranges:
  • Range for number of slots [3, 90].
  • Range for number of poles [2, 80].
  • Range for number of phases [3,15] in case of polyphase machines

Working beyond these bounds is possible but accuracy of the results is the responsibility of the user.

Three tables representing a selection of combinations of number of poles and number of slots for the most typical number of phases (three, five and seven) are presented below.

In these tables the number of slots goes from n to 90 (with n the number of phases) and the number of poles goes from 2 to 80.

To be noted:
  1. For three-phase machines, the grey cells correspond to combinations with a number of slots per pole per phase strictly lower than 0.25. These cases are not allowed by our process.
    Note: If the hairpin winding type is selected only configurations with an integer number of slots per pole and per phase are allowed.
  2. The black cells correspond to forbidden combinations from a technological point of view.
  3. The numbers indicated in the other cells correspond to reduction coefficients to the resulting model in Altair Flux TM .

    For example, “1” means that the whole geometry is represented. “2” means that only half of the machine is represented, and “n” means that the n th of the geometry is represented in the Flux®

That also gives a general idea of the size of the model in Flux® software. Higher value gives the reduction coefficient and faster computation for a given motor.

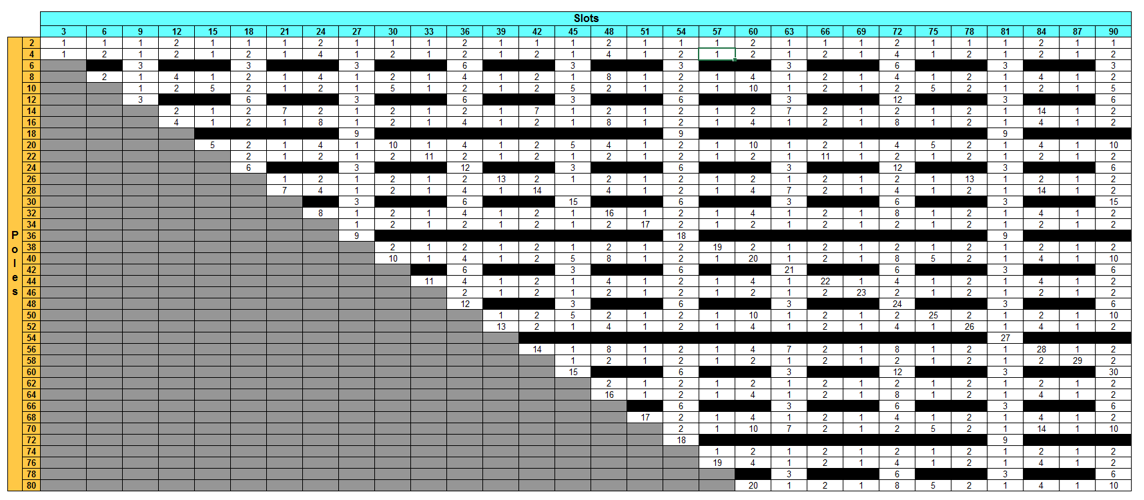

Combinations No. poles / No. slots for a three-phase machine

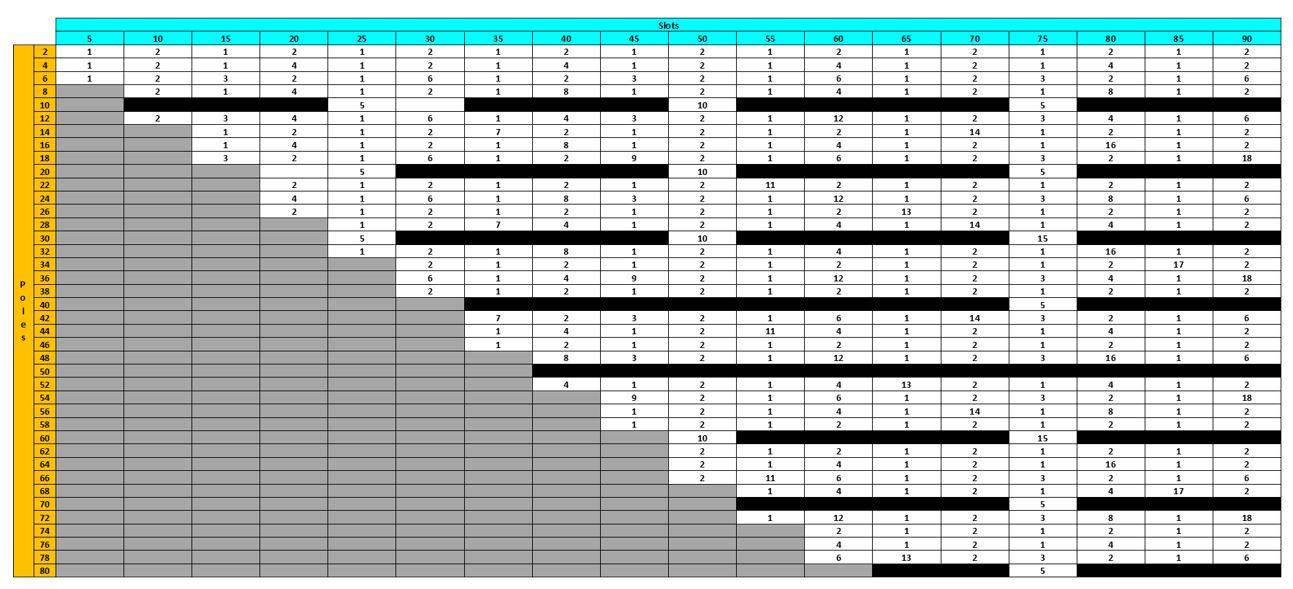

Combinations No. poles / No. slots for a 5-Phase machine

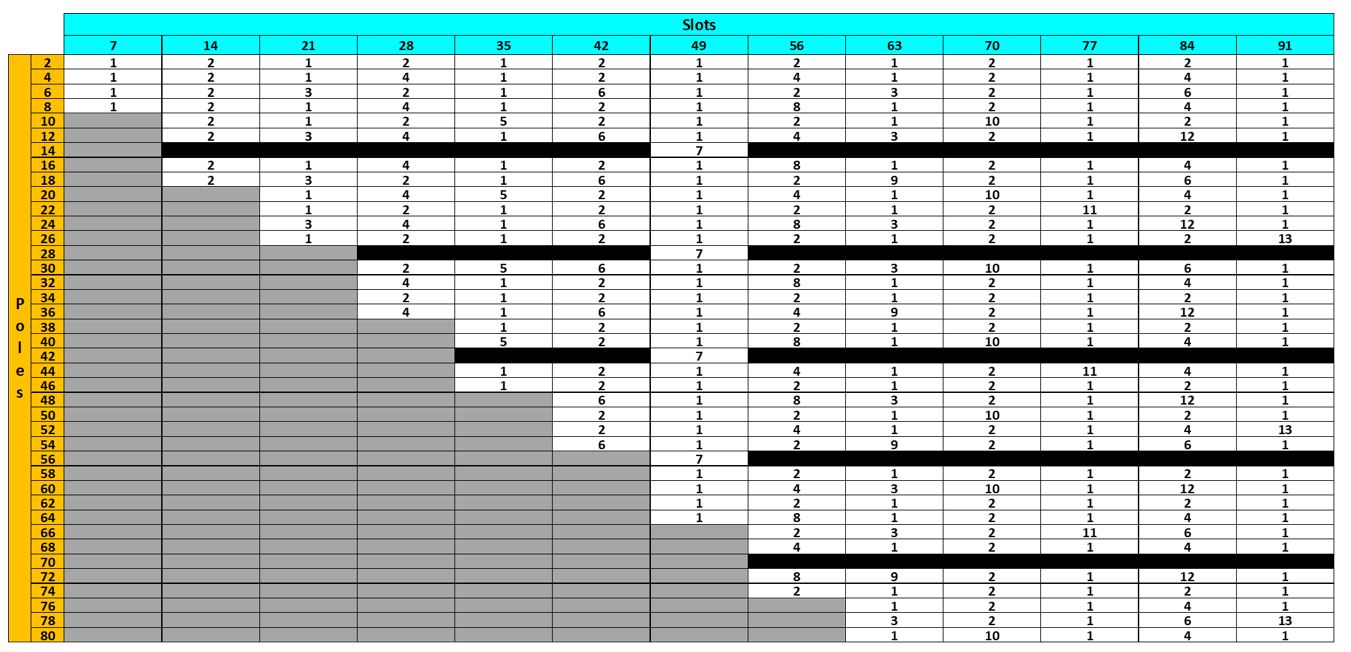

Combinations No. poles / No. slots for a 7-Phase machine
