POLE
Overview
 |
|

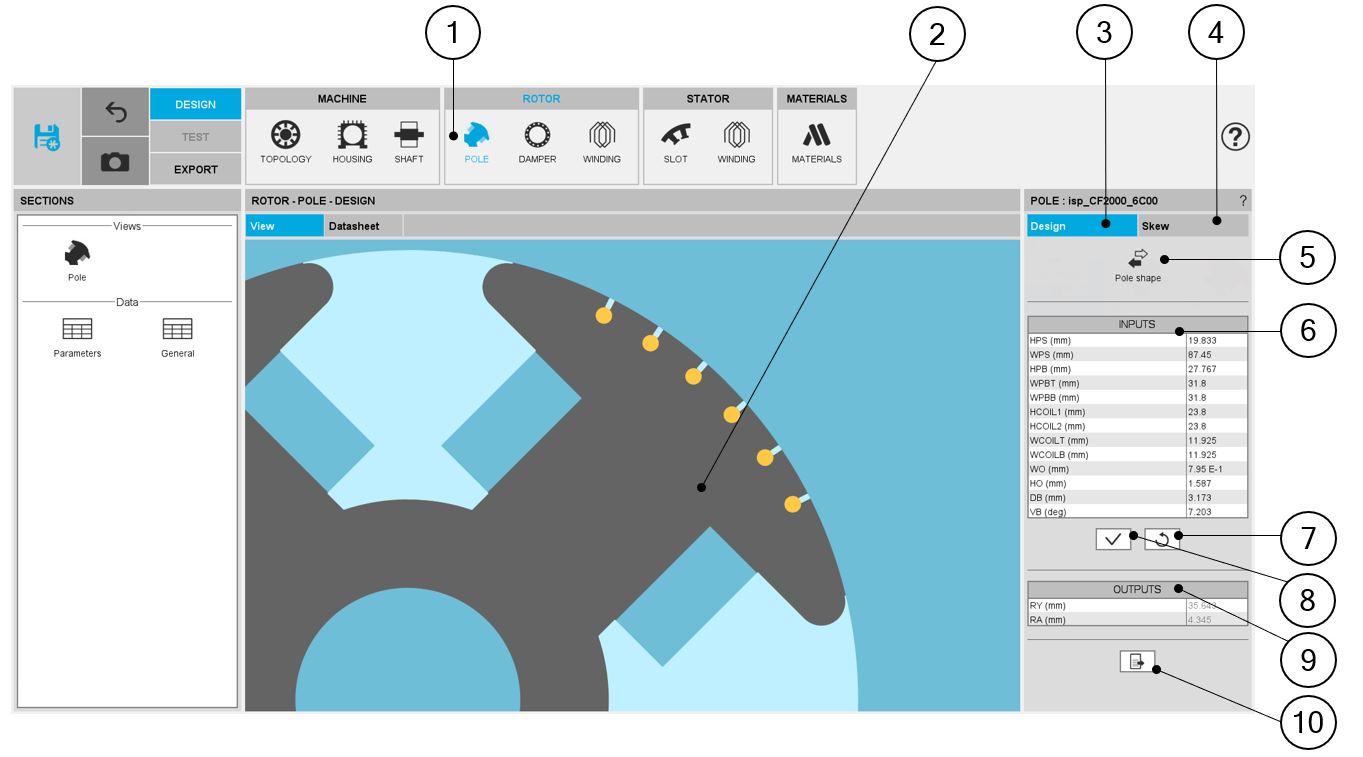

| POLE design area | |
| 1 | Selection of the ROTOR subset: POLE panel (click on the icon POLE) |
| 2 | Visualization of the motor radial view to view the pole topology and dimensions. |
| 3 |
The DESIGN tab indicates the tools to define the pole topology
and parameter values.
Note: By default, the
DESIGN tab is selected.
|
| 4 | The SKEW tab indicates the tools to define the rotor skew angle |
| 5 | "Pole shape" button allows accessing the pole libraries to change the pole topology. See additional information below. |
| 6 | User input parameter fields to enter the values. |
| 7 | Button to restore default input values. |
| 8 | Button to apply inputs. Pressing the “enter key” twice applies inputs too. |
| 9 |
Output parameters (read only data) to complete the description of the topology. In this section, some dimensions considered important for the dimension of the topology are given. |
| 10 | Icon to export pole data into *.txt or *.xlsx files. |
