Skew

Overview

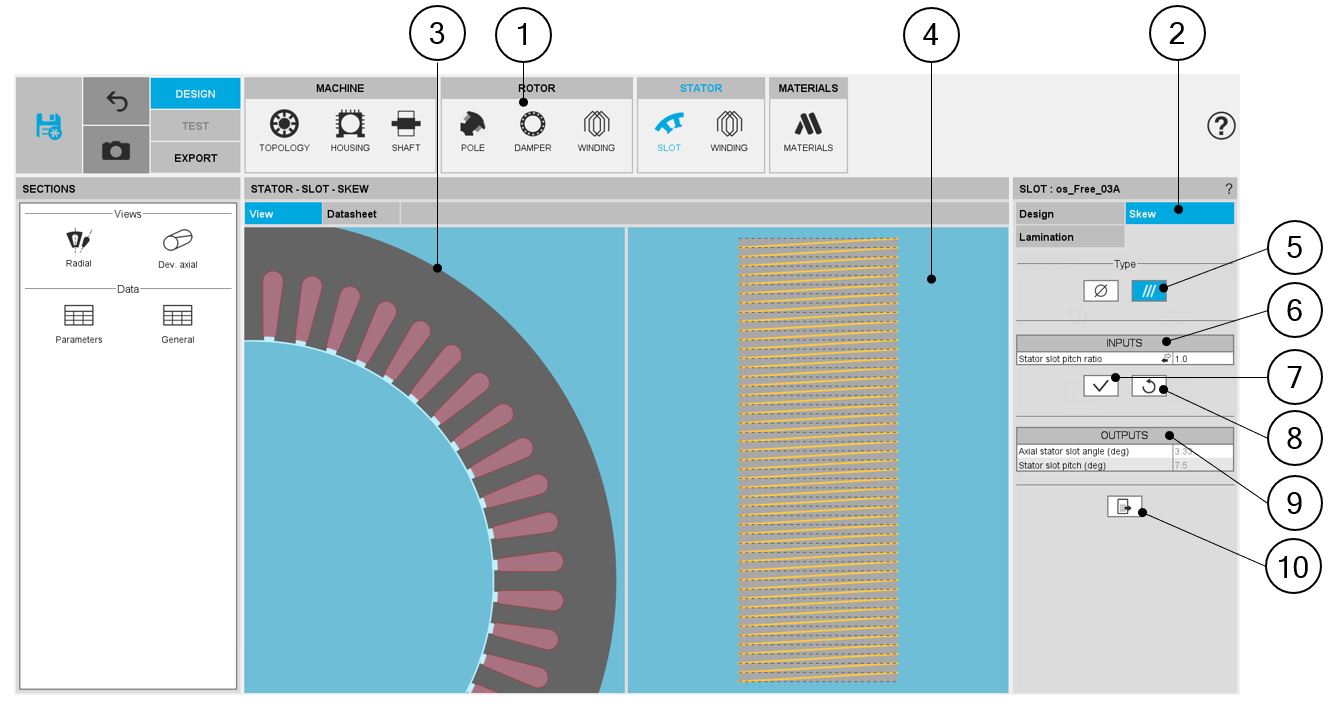

SLOT – SKEW design area
1	Selection of the STATOR subset: SLOT panel (Click on the icon SLOT).
2	Skew tab indicates the tool to define the slot skew angle.
3	Visualization of the machine radial view to visualize the slot skew.
4	Visualization of the stator developed view to visualize the slot skew.
5	Choices to define a skew: None – Continuous (Continuous in our example).
6	Skew inputs to be defined.
7	Buttons to validate the inputs (Pressing the “enter key” twice applies inputs too).
8	Buttons to restore the default input values.
9	Skew outputs (read only).
10	Button to export the skew data into .txt or .xls files.

Set a skew angle

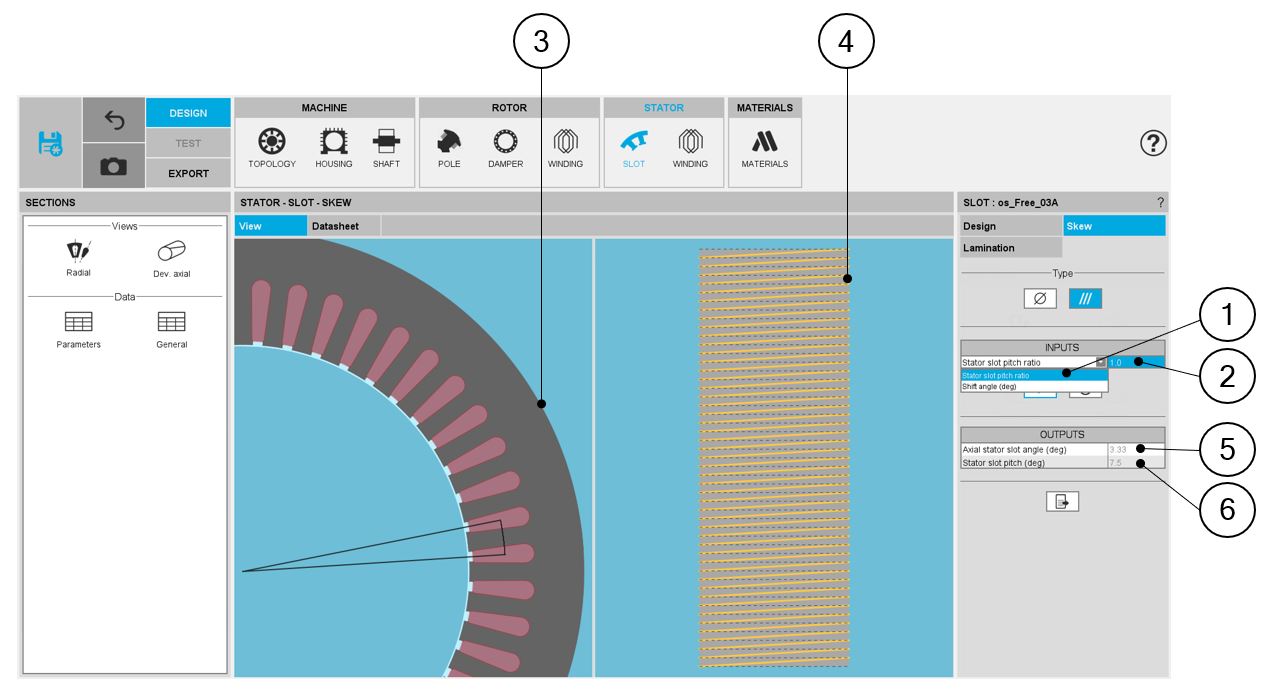

How to set a skew angle?
1	Choose the definition mode of the skew: Stator slot – Shift angle.
2	Definition of the skew angle depending of the definition mode.
3	Visualization of the chosen skew angle on the machine radial view.
4	Visualization of the equivalent axial slot angle on the rotor developed view.
5	Equivalent axial stator slot angle (read only).
6	Equivalent stator slot pitch (read only).

Note:

The user can add a skew angle on the rotor or on the stator.

If a skew is already defined in the rotor when setting a skew on the stator, the rotor skewing will be automatically reset to “None”.
