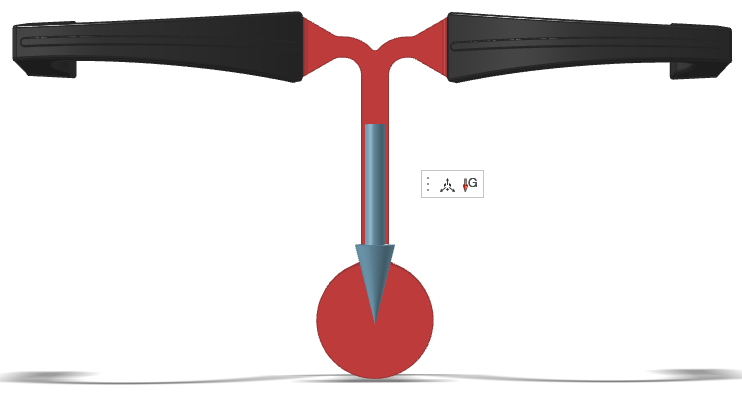

Set Gravity Direction

Orient the direction of gravity with respect to the model in order to control the flow of the liquid as it enters the mold and solidifies.

  1. Click the Casting tab.
  2. On the Cast Part icon, click Set Gravity Direction.
  3. Use the microdialog options to realign the direction of gravity with respect to the model.


  4. Right-click and mouse through the check mark to exit, or double-right-click.

Microdialog Options

Align the driection of gravity to the normal of a surface on the model, or rotate the direction of gravity.

Option Description
Rotate

Rotate the direction of gravity.
Align

Select a surface to align the direction of gravity to its normal.
