Add/Edit Crucible

Create and edit a virtual crucible in Inspire Cast.

1. Click the Casting tab.
2. Click the Components icon.


3. Click the Add/Edit Crucible icon.


4. Click any spot on the runner system or the part to create the crucible.
   Note: If you have defined an ingate, you must remove it to create a crucible.

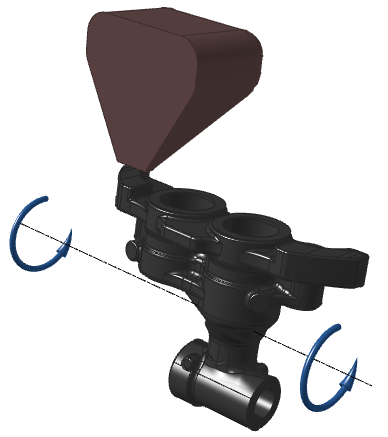

   The crucible is created.





5. Optional: Click another location on the runner system or the part to create another crucible.

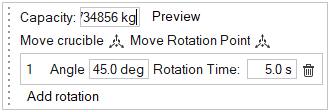

6. To edit the crucible, use the microdialog options to define the capacity.



7. Right-click and mouse through the check mark to exit, or double-right-click.
