Impedance computation - Auto
Overview
The aim of this section is to compute the inter bar and inter pole impedance of the damper circuit end rings.
 |
|

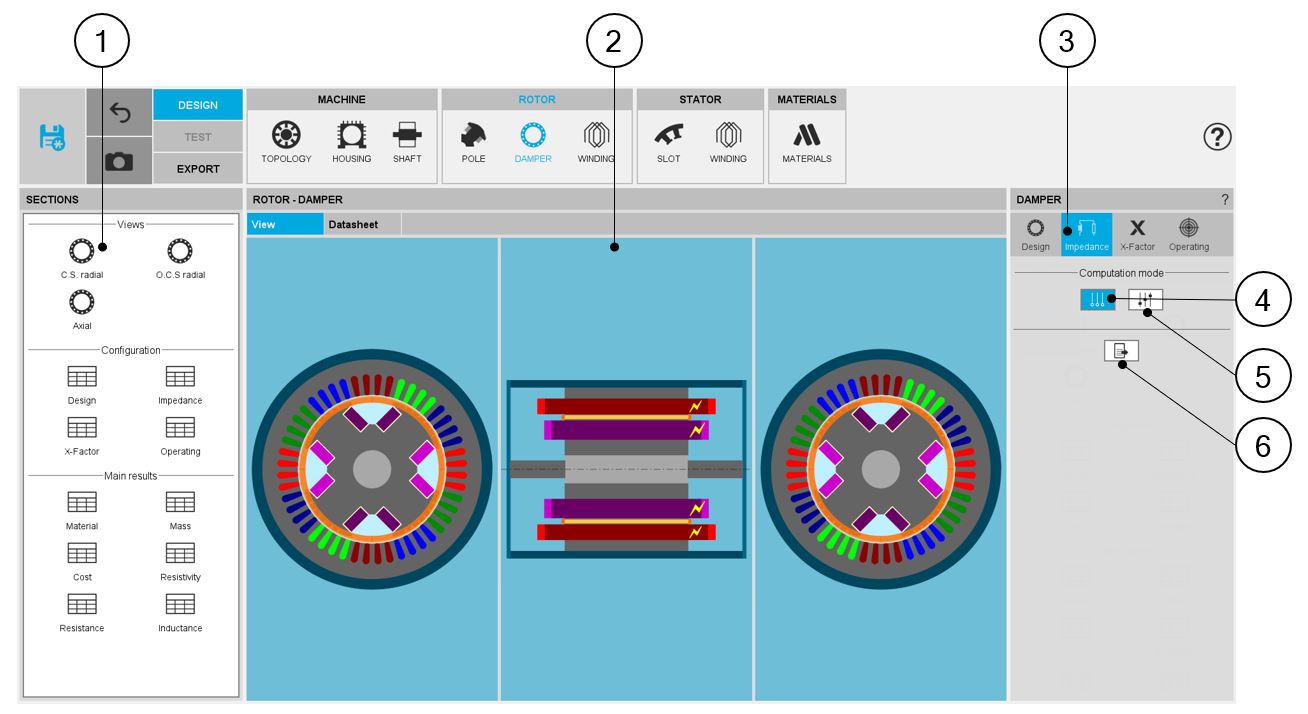

| END RING - IMPEDANCE area | |
| 1 | Shortcut panels to navigate in the impedance results |
| 2 | Main window for visualizing the machine axial view |
| 3 | Section dedicated to inter bar and inter pole impedance definition |
| 4 | “Automatic” computation mode selection |
| 5 | Constant computation mode |
| 6 | Icon to export end ring impedance data into *.txt or *.xlsx files. |
Automatic computation mode
When automatic computation mode is set, inter bar and inter pole end-ring impedances
are computed by internal processes. They are determined for the synchronous
operation of the machine, meaning that there is no slip between the rotor and the
stator. The temperature at the end ring (at Connection Side and Opposite Connection
Side), and the material of the end ring are considered for the internal calculation
process.
Note: Even if bars are not evenly distributed,
only an average value is provided for the inter bar impedance based on the
average distance between the bars.
