Kinematics and Compliance

The Kinematics and Compliance (K&C) test is performed by applying a range of forces at the two contact patches of a half-vehicle model to determine the suspension’s characteristics. The motion of the wheel caused by the force application is measured and recorded during this event. This in turn helps to determine suspension hard point locations, spring rates, bushing rates, arm lengths, and so on.

Introduction



Figure 1. Kinematics and Compliance Event

Detailed Description

The entire event simulation lasts for 90 seconds and can be broken into four distinct sub-events:
  • Ride
  • Roll
  • Contact patch force
  • Steer analysis
Note: For un-steered axles, the steer event is not present. Similarly, for dual axles there are in-sync and out-of-sync roll events. Based on these, the simulation end time can vary.
Ride
The event begins with the ride analysis wherein all wheels are subjected to a vertical displacement input through the jacks. The inputs have the same amplitude as those that are in phase. This part of the event lasts for 10 seconds.
Time in Seconds Action
0 to 2.5 Wheels move from Design Position to Jounce Position.
2.5 to 5.0 Wheels move from Jounce Position to Design Position.
5.0 to 7.5 Wheels move from Design to Rebound Position.
7.5 to 10.0 Wheels move from Rebound Position to Design Position.
10.0 Event Ends.
Roll
This event begins immediately after the ride event is complete. For this part of the event all wheels are subjected to a vertical displacement input through the jacks. The inputs amplitude is the same and with the left and right wheels being out of phase by 180 deg. This part of the event lasts for a duration of 10 seconds.
Time in Seconds Action
10 to 12.5 Left Wheels move from Design Position to Jounce Position.

Right wheels move from Design Position to Rebound Position.

12.5 to 15.0 Left Wheels move from Jounce Position to Design Position.

Right wheels move from Rebound Position to Design Position.

15.0 to 17.5 Left Wheels move from Design Position to Rebound Position.

Right wheels move from Design Position to Jounce Position.

17.5 to 20.0 Left Wheels move from Rebound Position to Design Position.

Right wheels move from Jounce Position to Design Position.

20.0 Event Ends.
Contact patch force
This event begins after the roll analysis is completed. This phase of the event evaluates the compliance of the suspension by simulating forces at the contact patch. For the first 20 seconds of this event, a lateral force is applied at the contact patch. The lateral force simulates cornering conditions. For the next 20 seconds, a longitudinal force is applied at the contact patch. The longitudinal force simulates braking and acceleration conditions. The third part of this event simulates moments about the wheel's axes by applying a torque about the wheel vertical axis. This part of the event lasts for 20 seconds again.
Time in Seconds Action
20 – 30 Lateral force is applied on all contact patches in a parallel direction.
30 - 40 Lateral force is applied on all contact patches in an opposing direction.
40 - 50 Aligning torque about the vertical axis (Global Z) is applied on all contact patches in the same direction.
50 – 60 Aligning torque about the vertical axis (Global Z) is applied on all contact patches in the opposing directions.
60 – 70 Longitudinal force is applied on all contact patches along the positive X direction of the Global Origin to simulate a braking condition.
70 – 80 Longitudinal force is applied on all contact patches along the negative X direction of the Global Origin to simulate an acceleration condition.
80 Event ends.
Steer analysis
This final part of the kinematics and compliance analysis involves testing the front suspension kinematics when a steering input is applied. This part of the event lasts for 10 seconds with steering motion applied in both directions.
Time in Seconds Action
80 – 85 Steering motion is applied in the counter-clockwise direction.
85 – 90 Steering motion is applied in the clockwise direction.
90 Event ends.
The entities in the event are displayed in the MotionView Model Browser as shown in the image below:


Figure 2. Browser View - Kinematic and Compliance Analysis

Input Parameters

The Vehicle Parameters used to perform the Kinematics and Compliance analysis are described in the table below:
Name Description
Vehicle End Choose “Front” for Front suspension. And “Rear” for rear suspension. This information is used in calculating Suspension Design Factors (SDF). Available options are: Front and Rear.
Type of suspension Option that needs to be set based on the suspension type. This information is used in calculating Suspension Design Factors (SDF). Available options are: independent and dependent.
Tire Static Loaded Radius (mm) The radius of the front tire with the vehicle weight acting on it.
Tire Vertical Spring Rate (N/mm) The spring rate of the tire. The value is used for computing certain outputs and needs to match the value in the tire property file when using force-based tires.
Vehicle CG Height (mm) The vertical distance from the vehicle CG body CG to the ground.
Wheelbase (mm) The longitudinal distance between the front and rear wheel center.
Front braking ratio Front braking ratio The brake force distribution at the front wheels. A value of 1 indicates 100% braking on the front.
Front drive ratio The ratio of engine power distributed to the front axle. A value of 1 indicates all power is sent to the front axle.
Axle ratio The ratio between the angular velocity of the input gear to the angular velocity of the output gear. It is also commonly known as gear or speed ratio of the axle’s differential.
Vehicle Weight (N) Total weight of the vehicle expressed in Newtons.

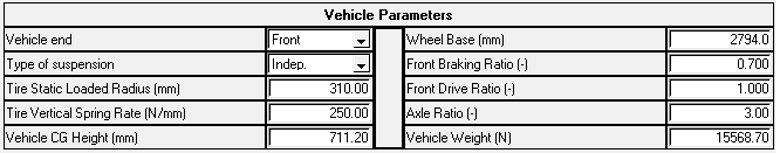

Figure 3. Vehicle Parameters - Inputs Form
The inputs to the kinematics and compliance event are described in the table below:
Name Description
Jounce travel in ride (mm) The vertical input distance for the wheels to travel in the upward direction relative to the ground in ride.
Rear rebound travel in ride (mm) The vertical input distance for the rear wheels to travel in the downward direction relative to the ground in ride.
Wheel travel in roll (jounce and rebound) (mm) The vertical input distance for the wheels to travel in both directions relative to ground.
Maximum lateral force (N) The sideways force applied at the wheel contact patch to simulate conditions experienced during cornering.
Maximum longitudinal force (N) The force applied along the length of the vehicle at the wheel contact patch to simulate braking and acceleration.
Maximum aligning torque (Nmm) The torque applied about the wheels vertical axis.
Maximum steering angle +/- (Deg) The rotational input at the steering wheel to simulate cornering.


Figure 4. Kinematic and Compliance Parameters - Inputs Form

Attachments

The Kinematic and Compliance analysis uses the following attachments:
Name Description
System System where the analysis is located, usually the model system.
Wheel Center Attaches the wheel center pair points.
Spindle align pt Attaches the pair points used as reference for the spindle alignment.
Lower kingpin pt Attaches the pair points used as the lower kingpin point.
Upper kingpin pt Attaches the pair points used as the upper kingpin point.
Wheel Attaches the wheel pair bodies.
Knuckle Attaches the knuckle pair bodies.
Wheel spindle revjt Attaches the pair revolute joints used to constraints the wheel bodies.
Steering Rack / Relay rodRack jt Attaches the to the translational joint at the rack body of the steering for a rack and pinion steering system.
Steering wheel Attaches revolute joint of the steering wheel used to apply the steering rotational motion.
Upper steer axis mrk. Body Attaches the body pairs used to define the upper steering axis marker.


Figure 5. Kinematics and Compliance Event – Attachments

Datasets

The Kinematics and Compliance analysis contains three datasets. The Vehicle Parameters and Suspension Travel take the vehicle and simulation parameters as input (as described in the tables under Input Parameters). The dataset Steering Actuation Application takes information related to the steering motion/force application point and the axis along (or about) which the motion/force is applied. This is used in locking the steer motion when compliance matrices are extracted for SDF calculations.



Figure 6. Model Browser View - Dataset "Full Vehicle Data"

Forms

The kinematics and compliance event contains two forms:
Form Description
Kinematics and compliance parameters This form should be used to define the simulation conditions such as jounce and rebound distance, steering angle, the contact patch forces, and so on.
Vehicle Parameters This form should be used to define the vehicle conditions such as its weight, CG height, wheelbase, vertical spring rate, and so on.


Figure 7. Model Browser View - Form "Kinematics and Compliance"


Figure 8. Dialog View - Form “Vehicle Parameters”


Figure 9. Dialog View - Form “Kinematics and Compliance Parameters”

Graphics

The kinematics and compliance analysis consists of two graphics entities to represent the two jacks up on which the vehicle is hoisted with the two tires being in contact with the jack.

The table below describes the graphics used in this event:
Name Type Description
Jack Cylinder Cylinder Represents the cylindrical column for the jack.
Jack Patch Box Represents the square platform for the jack.


Figure 10. Graphical View - Graphics in “Kinematics and Compliance”


Figure 11. Model Browser View - Graphics - Kinematics and Compliance

Joints

The kinematics and compliance analysis contains three joints. Two of these are in the Jack sub-system.

The table below describes the joints used in detail:
Name Type Description
Dummy fixed to Knuckle Fixed Connects the dummy body located at the contact patch to the knuckle body and is located at the wheel center.
Jack trans jt Translational Connects the jack body to the ground body and is aligned along global Z.
Inplane joint In plane Connects the wheel to the jack body and is located at the contact patch.


Figure 12. Model Browser View - Joints - Kinematics and Compliance

Markers

The kinematics and compliance analysis contains seven markers:
Name Description
Wheel center marker This marker is defined on the dummy bodies and is located at the wheel center. The test rig parameter array refers to this marker.
WC marker at ground Marker is defined on the ground body and is located at the wheel center. The test rig parameter array refers to this marker.
Kingpin axis marker Marker is defined on the knuckle, is located at the lower ball joint, and is aligned with the upper ball joint. The test rig parameter array refers to this marker. Used for geometric computation of the steer axis.
Jack CP marker Marker is defined on the Jack and is located at the Jack upper point (Jack geomu) referring to the tire contact patch.
Upper steer axis Marker used for geometric computation of the steer axis.
Wheel patch marker Marker is defined on the wheel and is located at the wheel patch. The marker is used by the patch force entity.
Ground patch marker Marker is defined on the ground body and is located at the Jack upper point (Jack geomu).


Figure 13. Model Browser View - Markers - Kinematics and Compliance

Points

The kinematics and compliance analysis contains two points:
Name Description
Jack geoml Point that locates the bottom of the jack. The point is referenced by the jack translational joint.
Jack geomu Point that locates the top of the jack. The point is also used as the tire contact patch point and referenced by the jack forces, joints, markers, outputs, and graphics.


Figure 14. Model Browser View - Points - Kinematics and Compliance

Solver Variables

The kinematics and compliance analysis contains six solver variable entities:
Name Description
Left Feedback variable Contains the expression that calculates the Global Z Displacement of the left wheel center marker, relative to the original location of the left wheel center, in the global coordinate system.
Left Command variable Contains the expression for ride and roll phases of the analysis for the left wheel. The expression is explained in detail below this table.
Right Feedback variable Contains the expression that calculates the Global Z Displacement of the right wheel center marker, relative to the original location of the right wheel center, in the global coordinate system.
Right Command variable Contains the expression for ride and roll phases of the analysis for the right wheel. The expression is explained in detail below this table.
Steering Feedback variable Contains the expression that calculates the Global Z Angular Displacement of the steering wheel, relative to the original location of the steering wheel center, in the global coordinate system.
Steering Command variable Contains the expression for steering phases of the analysis. The expression is explained in detail below this table.
Left Command variable


Figure 15. Wheel displacement left based on the solver variable expressions
Right Command variable


Figure 16. Wheel displacement right based on the solver variable expressions
Steering Command variable




Figure 17. Plots – Wheel Displacements for all four wheels based on the solver variable expressions


Figure 18. Model Browser View - Solver Variables - Kinematics and Compliance Analysis

Solver Differentials

The full vehicle kinematics and compliance analysis contains three solver differential entities:
Name Description
Diff Left Jack Contains the expression that is used by the left jack actuation force.
Diff Right Jack Contains the expression that is used by the right jack actuation force.
Diff Steering Contains the expression that is used by the steering actuation torque. The expression is explained in detail after this table.
Diff Left Jack expression in detail
The structure and logic for the three solver diff expressions are similar, the only difference being that they each use their respective solver variable values. The below uses the “Diff Left Jack” as an example:



Figure 19. Model Browser View - Solver Differentials - Kinematics and Compliance Analysis

Solver Array

The kinematics and compliance analysis contains two solver arrays, a Vehicle Parameter Array and a Testrig Parameter Array.
Vehicle Parameter array
The Vehicle Parameter array contains vehicle information that is used to calculate the SDF’s. Some of the data is also used in the analysis events to create point locations and forces. The data is entered in the Vehicle Parameter Form.
Vehicle Parameter Array Element Name Description Use
Ds_vehpar.veh_end.ival Vehicle End

1 ➔ front suspension

2 ➔ rear suspension

3 ➔ 2nd rear suspension

Communicates the suspension type to the SDF subroutine. The subroutine calculates different values for certain parameters depending on which end of the vehicle is being analyzed.
Ds_vehpar.dif_mnt.ival Differential Mount type

0 ➔ mounted to body

1 ➔ Unsprung mount (integral with the axle)

Used in the SDF calculations in the anti-lift and anti-dive calculations.
Ds_vehpar.tire_slr.value Tire Static Loaded Radius in mm Used to locate the “Jack GeomU” point and in many of the SDF calculations.
Ds_vehpar.tire_rate.value Tire Spring Rate in N/mm Used in the SDF calculations.
Ds_vehpar.cg_height.value Vehicle CG height, measured from ground to the CG in the Z direction (mm) Used in the SDF calculations (especially the Anti-lift and anti-dive calculations).
Ds_vehpar.wheel_base.value Vehicle Wheelbase (mm)
Ds_vehpar.front_brake.value The Ratio of front brake torque to total brake torque (typically 0.6 to 0.7)
Ds_vehpar.front_drive.value The ratio of the engine torque applied to the front axle divided by total torque
Ds_vehpar.axle_ratio.value The nominal Axle ratio of the suspension being analyzed (typically in the range 2.7-5.0)
Ds_vehpar.veh_weight.value Total Vehicle Mass in Kg
Testrig Parameter Array
The testrig parameter array contains point, force and motion data, and is passed to the SDF subroutine and used to run the SDF calculation event. The testrig parameter array is symbolically defined and should not require editing.
Array Element Name Description Use
mrk_wc.l.id Left Wheel Center Marker ID. Z axis points inboard along the spindle axis; ZX marker plane is along Global X; the resulting marker Y axis is down. The primary point location for left suspension SDF calculations. Most geometric properties and most Compliant SDF parameters are calculated using this point as input.
mrk_wc.r.id Right Wheel Center Marker ID. Z axis points inboard along the spindle axis; ZX marker plane is along global X; the resulting marker Y axis is up. The primary point location for right suspension SDF calculations. Most geometric properties and most Compliant SDF parameters are calculated using this point as input.
mrk_kp.l.id Left Kingpin Axis Marker ID. The marker placed at the Left Lower Ball Joint or a location that defines a point on the Left Kingpin axis. The Z axis of the marker points to the Left Upper Ball Joint or a point that defines a point on the kingpin axis. Marker Z axis is used for Caster and Kingpin Inclination calculations for the left side of the vehicle.
mrk_kp.r.id Right Front Kingpin Axis Marker ID. The marker placed at the Right Lower Ball Joint or a location that defines a point on the Right Kingpin axis. The Z axis of the marker points to the Right Upper Ball Joint or a point that defines a point on the kingpin axis. Marker Z axis is used for Caster and Kingpin Inclination calculations for the right side of the vehicle.
mrk_gnd.l.id Left Front Wheel Center Marker ID on Ground Body. The Marker is on the ground body at the Left Wheel Center location. The Z axis is parallel to the Global Z axis and the X axis is parallel to the global X axis. Marker is used for the left Wheel displacement control system and left wheel center displacement calculations in the SDF routine.
mrk_gnd.r.id Right Front Wheel Center Marker ID on Ground Body. The Marker is on the ground body at the Right Wheel Center location. The Z axis is parallel to the Global Z axis and the X axis is parallel to the global X axis. Marker is used for the right Wheel displacement control system and right wheel center displacement calculations in the SDF routine.
sfo_jack_actuator.l.i.id I Marker ID of the Left Force between the jack and ground that is used to actuate the left wheel suspension motion. Forces are used for the SDF subroutine calculations and the force reported by the SDF routine. The I and J marker ID’s are required to recover the correct force.
sfo_jack_actuator.r.i.id I Marker ID of the Right Force between the jack and ground that is used to actuate the right wheel suspension motion. Forces are used for the SDF subroutine calculations and the force reported by the SDF routine. The I and J marker ID’s are required to recover the correct force.
sfo_jack_actuator.l.j.id J Marker ID of the Left Force between the jack and ground that is used to actuate the left wheel suspension motion. Forces are used for the SDF subroutine calculations and the force reported by the SDF routine. The I and J marker ID’s are required to recover the correct force.
frc_frnt_jack.r.j.id J Marker ID of the Right Front Force between the Jack and ground that is used to actuate the Right wheel suspension motion. Forces are used for the SDF subroutine calculations and the force reported by the SDF routine. The I and J marker ID’s are required to recover the correct force.
sfo_jack_actuator.r.j.id J Marker ID of the Right Force between the jack and ground that is used to actuate the right wheel suspension motion. Forces are used for the SDF subroutine calculations and the force reported by the SDF routine. The I and J marker ID’s are required to recover the correct force.
j_st_wheel.i.id Steering wheel or Rack I Marker. Steering input marker used in compliance matrix to compute instant steer axis.
-1 Steering wheel or Rack J Marker – can be used in a user-build testrig, in effect if next parameter is negative. Steering input marker used in compliance matrix to compute instant steer axis.
ds_steering_actuation_application.int_api_value.value 1:6 chooses direction, such as TX, TY, TZ, RX, RY, RZ and sign swaps the Markers 10 and 11, such that negative sign makes 11 the actuation marker. Determine which marker (from 10 or 11) is used and which axis on the steering marker is used in the compliance matrix to compute instant steer axis.
mrk_upr_mnt.l.id Left Topmount Marker Located at upper ball joint or some approximation on upper control arm.
mrk_upr_mnt.r.id Right Topmount Marker
mrk_jack_cp.l.id Left Jack Contact Patch Markers on Jack Bodies, z pointing upwards.
mrk_jack_cp.r.id Right Jack Contact Patch


Figure 20. Model Browser View - Solver Arrays - Kinematics and Compliance Analysis

Force

The kinematics and compliance analysis contains three force entities:
Name Description
Jack Vertical Actuator This is an Action Reaction force pair which acts on the jack and is reacted on ground in the vertical direction. The force is a DIF() that points to the SolverDiff ID’s for the Left and Right Jacks.

When the DIF is evaluated during statics and quasi-statics, the derivative of the Solver Differential Equation is set to zero. The result is that a Force is generated by the DIF that forces the measured wheel displacement to follow the command wheel displacement.

Steering Actuator This is an Action Reaction torque which acts on the steering wheel and is reacted on vehicle body in the steering wheel alignment direction. The torque points to the SolverDiff which ensures that the right amount of torque is applied to rotate the steering wheel such that the desired steer angles is achieved. Desired steer angle is provided in the solver variable “Steering Command variable”.
Patch Force This is an Action Only force pair applied at the wheels contact patch with the wheel patch marker as reference to simulate longitudinal, lateral, and aligning forces.

The forces for each direction are defined using expressions as listed below.

Fx - Left
`SHF(time,60,{ds_travel.max_long_force.value},0.1*PI,0,0)*
STEP(TIME,60,0,60.01,1)*STEP(TIME,79.9,1,80,0)`

The expression contains a simple harmonic function that applies a sinusoidal force input, whose value is defined in the KnC Parameter Dataset, at a frequency of 0.1PI between 60 to 80 seconds.

Fy - Left
`SHF(time,20,{ ds_travel.max_lat_force.value},0.2*PI,0,0)*
STEP(TIME,20,0,20.01,1)*STEP(TIME,39.9,1,40,0)`

The expression contains a simple harmonic function that applies a sinusoidal force input, whose value is defined in the KnC Parameter Dataset, at a frequency of 0.2PI between 20 to 40 seconds.

Fz – Left 0
Tx – Left 0
Ty – Left 0
Tz – Left
`SHF(time,40,{ds_travel.max_algn_torq.value},0.2*PI,0,0)*
STEP(TIME,40,0,40.01,1)*STEP(TIME,59.9,1,60,0)`

The expression contains a simple harmonic function that applies a sinusoidal torque input, whose value is defined in the KnC Parameter Dataset, at a frequency of 0.2PI between 40 to 60 seconds.

Fx - Right
`SHF(time,60,{ds_travel.max_long_force.value},0.1*PI,0,0)*
STEP(TIME,60,0,60.01,1)*STEP(TIME,79.9,1,80,0)`

The expression contains a simple harmonic function that applies a sinusoidal force input, whose value is defined in the KnC Parameter Dataset, at a frequency of 0.1PI between 60 to 80 seconds.

Fy - Right
`SHF(time,20,{ds_travel.max_lat_force.value},0.2*PI,0,0)*
STEP(TIME,20,0,20.01,1)*STEP(TIME,29.9,1,30,0)-SHF(time,30,{ds_travel.max_lat_force.value},0.2*PI,0,0)*
STEP(TIME,30,0,30.01,1)*STEP(TIME,39.9,1,40,0)`

The expression contains a simple harmonic function that applies a sinusoidal force input, whose value is defined in the KnC Parameter Dataset, at a frequency of 0.2PI between 20 to 40 seconds. For the first 10 seconds between 20 – 30 seconds, the force is positive Y direction and negative Y for the next 10 seconds. This is done to simulate parallel and opposing lateral forces with respect to the left wheel.

Fz – Right 0
Tx – Right 0
Ty – Right 0
Tz – Right
`SHF(time,40,{ds_travel.max_algn_torq.value},0.2*PI,0,0)*
STEP(TIME,40,0,40.01,1)*STEP(TIME,49.9,1,50,0)-SHF(time,50,{ds_travel.max_algn_torq.value},0.2*PI,0,0)*
STEP(TIME,50,0,50.01,1)*STEP(TIME,59.9,1,60,0)`

The expression contains a simple harmonic function that applies a sinusoidal torque input, whose value is defined in the KnC Parameter Dataset, at a frequency of 0.2PI between 40 to 60 seconds. For the first 10 seconds between 40 – 50 seconds, the torque is in the same direction as the left wheel and opposite to it for the next 10 seconds. This is done to simulate parallel and opposing aligning torques with respect to the left wheel.



Figure 21. Model Browser View - Forces - Kinematics and Compliance Analysis

Joints

The kinematics and compliance analysis contains three joints.

The table below describes the use of each joint.
Name Description
Dummy Fixed to Knuckle Fixed joint pair that attaches the knuckle to the dummy body and is located at the wheel center.
Jack trans jt. Translational joint that attaches the jack to the ground body and is located at the Jack geoml point.
Inplane joint Inplane joint that attached the wheels to the jack and is located at the Jack geomu point (tire patch location).


Figure 22. Model Browser View - Joints - Kinematics and Compliance Analysis

Motions

The kinematics and compliance analysis contains one motion.
Name Description
Wheel spindle motion Wheel spindle motion provides the lock between the wheels and the spindles and prevents the wheels and tires from rotating.


Figure 23. Model Browser View - Motions - Kinematics and Compliance Analysis

Outputs

The kinematics and compliance analysis consists of a total of 47 output entities. They can be broadly classified in to two groups: Static design factor outputs (SDFs) and non-SDFs.

The SDF outputs are computed using a sub-routine that uses the SolverArrays defined in this event and are explained in detailed in SDF Output. The SDF outputs are organized in the sub-system Suspension Design Factors (SDF) Requests as illustrated in the image below.
Figure 24. Model Browser View – SDF outputs - Kinematics and Compliance Analysis
The non-SDF outputs are based on the common MotionView output requests (Force, Displacement, Velocity, Acceleration, and Expressions). The table below describes the non-SDF outputs.
Name Description
Wheel Center Height – Left Measures and outputs the displacement between left wheel and the left jack in the global reference frame.
Wheel Center Height – Right Measures and outputs the displacement between right wheel and the right jack in the global reference frame.
Left Vertical Force Measures and records output for the force at the Inplane joint-left in the global reference frame.
Right Vertical Force Measures and records output for the force at the Inplane joint-right in the global reference frame.
Left Applied Tire Patch Force Measure and outputs the force at the left tire contact patch in the global reference frame.
Right Applied Tire Patch Force Measure and outputs the force at the right tire contact patch in the global reference frame.
Left Wheel Center Displacements Measures and outputs the displacement between the left front wheel and the ground body in the wheel center marker reference frame.
Right Wheel Center Displacements Measures and outputs the displacement between the right front wheel and the ground body in the wheel center marker reference frame.
Roll Angle / Track width F2 ➔ Computes the roll angle using the expression:
`(ATAN(DZ({b_wheel.l.cm.idstring}, {b_wheel.r.cm.idstring},{MODEL.Global_Frame.idstring} )/DY({b_wheel.l.cm.idstring}, {b_wheel.r.cm.idstring}, {MODEL.Global_Frame.idstring})))*RTOD`
F3 ➔ Computes the track width using the expression:
`-DY({mrk_patch.l.idstring},{mrk_patch.r.idstring})`
Left Caster/Kingpin inclination F2 ➔ Computes the Caster angle of the left wheel:
`(AY({mrk_kp.l.idstring},{MODEL.Global_Frame.idstring})) *RTOD`
F3 ➔ Computes the Kingpin Inclination of the left wheel:
`-(AX({mrk_kp.l.idstring},{MODEL.Global_Frame.idstring})) *RTOD`
Right Caster/Kingpin inclination F2 ➔ Computes the Caster angle of the right wheel:
`(AY({mrk_kp.r.idstring},{MODEL.Global_Frame.idstring})) *RTOD`
F3 ➔ Computes the Kingpin Inclination of the right wheel:
`(AX({mrk_kp.r.idstring},{MODEL.Global_Frame.idstring})) *RTOD`
Figure 25. Model Browser View – non-SDF outputs - Kinematics and Compliance Analysis

Templates

The kinematics and compliance analysis contains two templates.

The first template, KC Command Lines, defines the output file control statements, the static analysis blocks where entity states are modified, and simulation begin and end times specified.

The second template returns the Radial vector that points from the wheel center to the tire patch. This is used to locate the tire patch.

The table below describes the first template, KC Command Lines:
Statement Description
{sim_time = sim_data.end_time.value
 print_int = sim_data.print_interval.value
 if(sim_time>20)
 ride_roll_time = 20
 else
 ride_roll_time = sim_time
 endif}
This is a simple parameterization for evaluating and sending the solver commands to MotionSolve XML’s <command/> section. IF condition determines whether to continue after Ride/Roll analysis or not.
<ResOutput
       plt_angle   = "YAW_PITCH_ROLL"
/>
<ResOutput
       mrf_file    = "TRUE"
/>
  <ResOutput
       plt_file    = "TRUE"
/>
 <H3DOutput
       switch_on   = "TRUE"
       increment   = "1"
/>
  <ResOutput
       abf_file    = "TRUE"
/>
The output block defines the result format and the files that the solver needs to generate.
<Deactivate
	element_type = "MOTION"
	element_id   = "{mot_spin.l.idstring}"
/>
<Deactivate
	element_type = "MOTION"
	element_id   = "{mot_spin.r.idstring}"
/>

These two set of deactivate statements turn OFF the wheel motions that have been locking the wheels from moving.
<Simulate
	analysis_type  = "Static"
      	end_time       = "{ride_roll_time}"
 	print_interval = "{print_int}"
/>
Performs a static simulation for 20 secs.
{if(sim_time>20)}
<Activate
	element_type = "MOTION"
	element_id  = "{mot_spin.l.idstring}"
/>
<Activate
	element_type = "MOTION"
	element_id  = "{mot_spin.r.idstring}"
/>
<Simulate
	analysis_type       = "Static"
      	end_time            = "{sim_time}"
 	print_interval      = "{print_int}"
/>
{endif}
The IF condition combined with the activate statements, turn ON the wheel motions, locking the wheels, after the simulation reaches 20sec, in other words after the simulation perform the Ride and Roll analysis. A static simulation then progress from 20s until the end time = {sim_time}, 90s for the Kinematic and Compliance analysis.
<Stop/>
Stops the simulation.


Figure 26. Model Browser View - Templates - Kinematics and Compliance Analysis

Sub System

The kinematics and compliance analysis contains three sub-systems.

The Jack sub-system contains two joints and three vectors. The joints connect the jack to ground and to the wheel. The vectors are parallel to the Global axes and are used as reference vectors.


Figure 27. Model Browser View - Jack Sub-System - Kinematics and Compliance Analysis
The Marker for the request sub-system contains four markers that can be used to take the ground reference.


Figure 28. Model Browser View - Marker for the request Sub-System - Kinematics and Compliance Analysis
The Suspension Design Factors (SDF) Requests sub-system contains the 36 SDF output requests.


Figure 29. Model Browser View - Suspension Design Factors (SDF) Requests Sub-System - Kinematics and Compliance Analysis
