SS-V: 3050 Table Frame
Test No. VT06 Find temperature at points A, B, C, and D of an eight tube assembly.
Definition

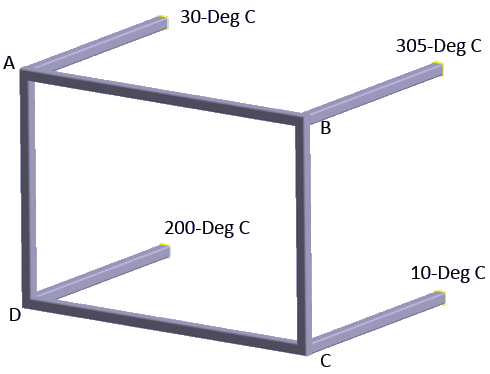

Figure 1.
The model is a hollow tubular frame with dimmensions 2.25 x 1.5 x 1.5 m.
The units are SI.
The material properties are:
- Properties
- Value
- Material
- AISI Steel
Results
The following table summarizes the
temperature at the four points of interest.
| Location | Reference | SimSolid | % Difference |
|---|---|---|---|
| A | 110.2 | 112.1 | 1.72% |
| B | 182.0 | 180.6 | -0.77% |
| C | 107.6 | 109.3 | 1.58% |
| D | 143 | 143 | 0.00% |
1 LM-TH-1 Learning Module 1, Thermal
Analysis, Dr. Jack Xin, Dr. Liang-Wu Cai, www.femlearning.org, 2010.
