MV-3022: Optimize a 4-Bar Model

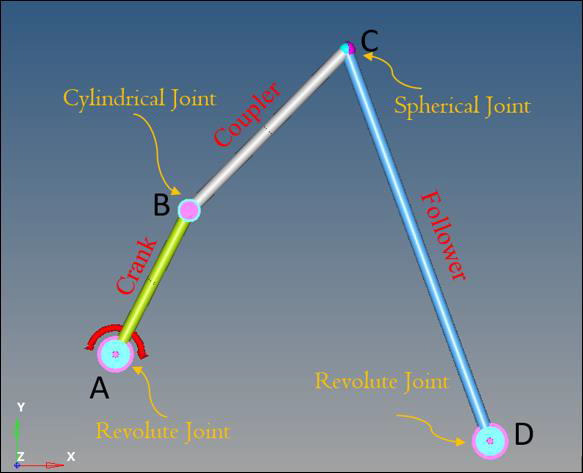

In this step, you will review the 4-bar model in MotionView.

1. Open the file mv_3022_initial_4bar_opt.mdl in MotionView.
2. Review the entities in the model.
   1. Verify the presence of curves Desired Coupler Path DX and Desired Coupler Path DY, which define the desired motion in the X and Y directions.
   2. Verify the presence of output Desired Coupler Trajectory, which uses the curves to measure the desired motion.
   3. Verify the presence of output Actual Coupler Trajectory, which measures the displacement of the coupler body at the CM.



      Figure 2.

1. In the Project Browser, right-click on Model and select Optimization Wizard from the context menu.
2. In the Design Variables page, click on the Points tab.
   The points are listed in Figure 3:



   Figure 3. Optimization Wizard – Points Tab

3. For points A, B, C, and D, make the x and y coordinates design variables. Click the (Filter datamembers) icon.
4. In the Filter dialog, click to turn off the Z check box.

   Figure 4.

5. Click OK.
6. In the Model Tree, select Point A, Point B, Point C, and Point D. Then click Add.
7. Modify the upper and lower bounds of the design variables according to Table 2:

   Table 2.

   DV	Lower Bound	Upper Bound
   Point A(DV) - X	-50	50
   Point A(DV) - Y	-50	50
   Point B(DV) - X	20	80
   Point B(DV) - Y	180	280
   Point C(DV) - X	240	380
   Point C(DV) - Y	400	620
   Point D(DV) - X	180	520
   Point D(DV) - Y	-100	20

   You have finished the process of setting design variables.

Now you will add response variables to the optimization.

1. Click on the Responses page.
2. Click on the button.
3. Change the Label to 'rms2_dx'.
4. Click OK to create a response variable.
5. Once the response variable is created, under Response Type, choose Root Mean Square Deviation.
6. Double-click the Curve collector and choose Desired Coupler Path DX for the Desired Curve user input. This is the target curve for Couple-DX.
7. For Response Expression, type the expression `DX({b_bc.cm.id})` (DX of CM coupler body).
8. Follow the steps again to create one more Root Mean Square Deviation response. Use Table 3 to fill in the details.

   Table 3.

   RV	Desired Curve	Response Expression
   rms2_dx	Desired Coupler Path DX	`DX({b_bc.cm.id})`
   rms2_dy	Desired Coupler Path DY	`DY({b_bc.cm.id})`

   The completed Responses page should appear as shown in Figure 5:



   Figure 5. Completed Responses page

In this step you will add two objectives to the problem.

1. Navigate to the Goals page.
2. Under Objectives, click .
   This will add an objective with the response rv_rms2_dx.
3. For Weight choose 1.0 retain the Type as min (you want to minimize the response).
4. Repeat these steps to add another objective. Choose rv_rms2_dy for the second objective.
5. For Weight choose 1.0 retain the Type as min.
   There are no constraints in this problem, so you have now finished model setup. The model is ready to solve.



   Figure 6. Defining objectives

Now you will run the optimization.

1. Navigate to the Solutions page.
2. Activate the Plot Optimization Summary check box.
3. Click on Save & Optimize to start the optimization.
   Once the optimization process is complete, the text window displays the optimized design variables values, final value of the responses and optimized cost function.



   Figure 7. Optimization text window after the optimization is completed

   The expected values of design variables are provided in Table 4:

   Table 4.

   DV	Expected	From Optimizer
   p_0.x	0	-0.0660
   p_0.y	0	-0.2796
   p_1.x	40	39.97
   p_1.y	200	199.71
   p_2.x	360	360.07
   p_2.y	600	600.26
   p_3.x	400	400.44
   p_3.y	0	-0.0406

In this step you will post-process the results of the optimization run.

1. Once the solution is finished, navigate to the Review Results page.
   The Summary tab lists the history of design variables, responses and objective functions in a tabular format. In this tutorial, the optimized design variables are from iteration 27.



   Figure 8. Summary tab listing design variables, responses and cost function iteration-wise

2. Click the Plot tab. Plot Overall Objective versus Iteration variable.
   The Plot tab helps to visualize variation of design variables, response variables and cost function using graphs. You can choose to plot any number of variables along the y-axis with respect to a variable along the x-axis.



   Figure 9. Plot of overall objective (log scale) vs. iteration number

   Note: You can also see how a particular design variable varied across an iteration. For example, select p_b.x (Point B-X) in the Y list and click Apply.



   Figure 10.

3. Animate the configuration generated during any iteration.
   1. In the Animation tab, from the Iteration drop-down menu choose the iteration number you want to animate (for this tutorial, choose Iteration 27.
   2. Click Load Result to load the animation corresponding to the iteration you chose.



   Figure 11. Animation tab in the Post Processing page

   From this tab, you also have the option to export an archive of the model from any configuration.
4. Load the results from Iteration 27.
5. Use the Archive Model location browser to choose a file path.
6. Click Export.
7. Observe how the path of the coupler for the optimized result compares with the desired target path.
   1. Close the Optimization Wizard.
   2. Add a page to your MotionView session.
   3. Change the client in the new page to HyperGraph.
   4. Open the .abf file in the last iteration folder of the optimization run.
      Note: The optimization run directory is automatically created during the solution and follows the naming convention py_name_timestamp where py_name is the name of the Python file given in the Solution page and timestamp is the time when the solution was initiated.



      Figure 12.

   5. For the X and Y axis, select the following Type, Request, and Component:

      Table 5.

      Axis	Type	Request	Component
      X	Expressions	REQ/70000000 Desired Coupler Trajectory	F2
      Y	Expressions	REQ/70000000 Desired Coupler Trajectory	F3



      Figure 13.

   6. Click Apply.
   7. Plot the actual trajectory of the coupler CM using the following X and Y axis specifications:

      Table 6.

      Axis	Type	Request	Component
      X	Marker Displacement	REQ/70000003 Actual Coupler Trajectory - (on Coupler) (on 'Coupler')	X
      Y	Marker Displacement	REQ/70000003 Actual Coupler Trajectory - (on Coupler) (on 'Coupler')	Y

      The resulting plots will overlay each other.



      Figure 14.

In this step, you will use a powerful feature in MotionSolve to obtain the optimal design by recovering from a failed iteration.

1. Return to the Design Variables page and change the nominal value, upper and lower bounds as shown in Figure 15:



   Figure 15. Value of Design Variables

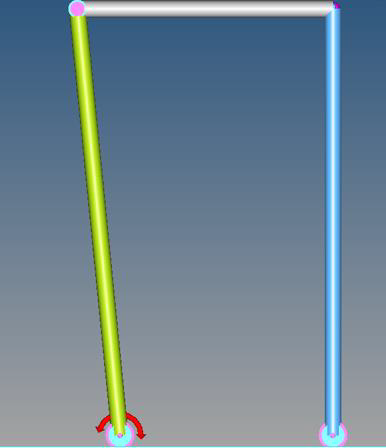

   The four bar mechanism should look like the example in Figure 16:



   Figure 16. Four bar mechanism after changing the value of Dvs

2. Retain the Responses, Objectives and Constraints you defined earlier in the tutorial.
3. Run an optimization with a different Output file in the Solutions page as 4bar_opt_for_recover.py.
   The number of iterations will change due to a different initial design.

   Important: Pay attention to the last column ‘Reduced Step’ in the solver output:



   Figure 17. Solver output when recovery mode is invoked

   In this example, the optimizer has found infeasible design in iteration 2-7; it is then told to reduce the step size until a feasible design is found.
4. Check the output files. In most cases, the output files could tell you why solver fails at a specific point and how you can avoid it if possible.

   Figure 18. Subfolders that contain the infeasible designs

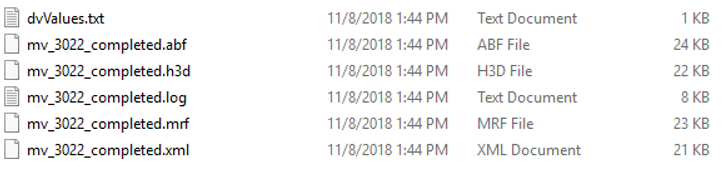

   When the optimizer recovers from an infeasible design, an additional folder ‘Infeasible Points’ is created; each subfolder contains the following information:

   • dvValues.txt: Value of design variables
   • 4bar_opt_for_recover.abf: MotionSolve output file
   • 4bar_opt_for_recover.h3d: Animation file (provided only when available)
   • 4bar_opt_for_recover.log: MotionSolve log file
   • 4bar_opt_for_recover.mrf: MotionSolve output file
   • 4bar_opt_for_recover.xml: MotionSolve xml input file



   Figure 19. Output for each infeasible design

   You have found that the h3d file and log file are useful in most cases. You will load this h3d file in HyperView and see what is going wrong.
5. Load 4bar_opt_for_recover.h3d in folder Infeasible Point 1 -- iter-2.
   You can see that the system enters a lock-up position before the solver crashes:



   Figure 20.

6. Check the result.

   The result you see in the example is very close to what you get in STEP 5 and the cost function is reduced significantly. This shows you can get the optimal design even with infeasible design encountered in the intermediate step. However, the optimality is not guaranteed in some cases. When that happens, you can improve the result by adding proper constraints based on your investigation in previous steps. For four bar mechanism, you can add Grashof constraints. An example of how to do this in MotionSolve is included.
