Coil
This section is the same as of 3-Phase winding, please refer to the user help guide:
“MotorFactory_2023.1_Winding” for further technical details about:
- Wire topologies
- Filling methods
- Grouping methods
- Wire dimensions
 |
|

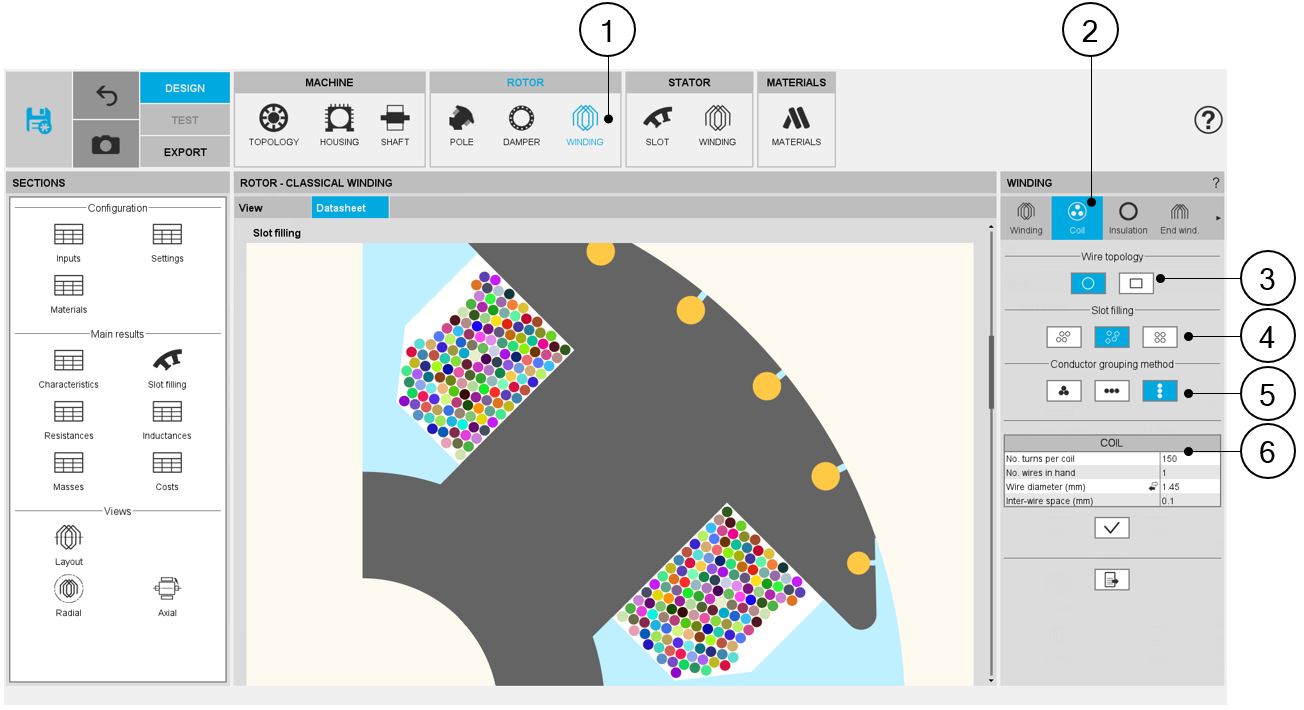

| Definition of the coil – Case of Circular wires | |
| 1 | Selection of the STATOR subset: WINDING panel (click on the icon WINDING) |
| 2 | Coil settings allow the user to describe the coil composition (turns, wires, and dimensions) and how to fill the slot. |
| 3 | Definition of the wire topology, Circular or Rectangular |
| 4 |
Choice of the method to fill the slot: Three ways are allowed to fill the slot: Orthocyclic, Random, and Layer. See the illustrations in the referent document dedicated to the winding. |
| 5 |
Choice of the method to group the elementary wires. Three ways allow to fill the slot: Grouped, Horizontal, Vertical. See the illustrations in the referent document dedicated to the winding. |
| 6 | Description of the coil (turns, wires in hand) and dimensions of elementary wires |
Note: The rotor windings are described in the same way as for the
stator winding coils. For additional information, please refer to the section "Coil
design" in the section "Windings" above.
