End winding
Note: Compared to the 3-Phase Winding, the only difference in the
insulation section is that for pole DC winding, there is only one type of end winding,
which is the U-shape end winding. Please refer to the user help guide: “Windings” for
further technical details about the topology of end winding and its dimensions.
 |
|

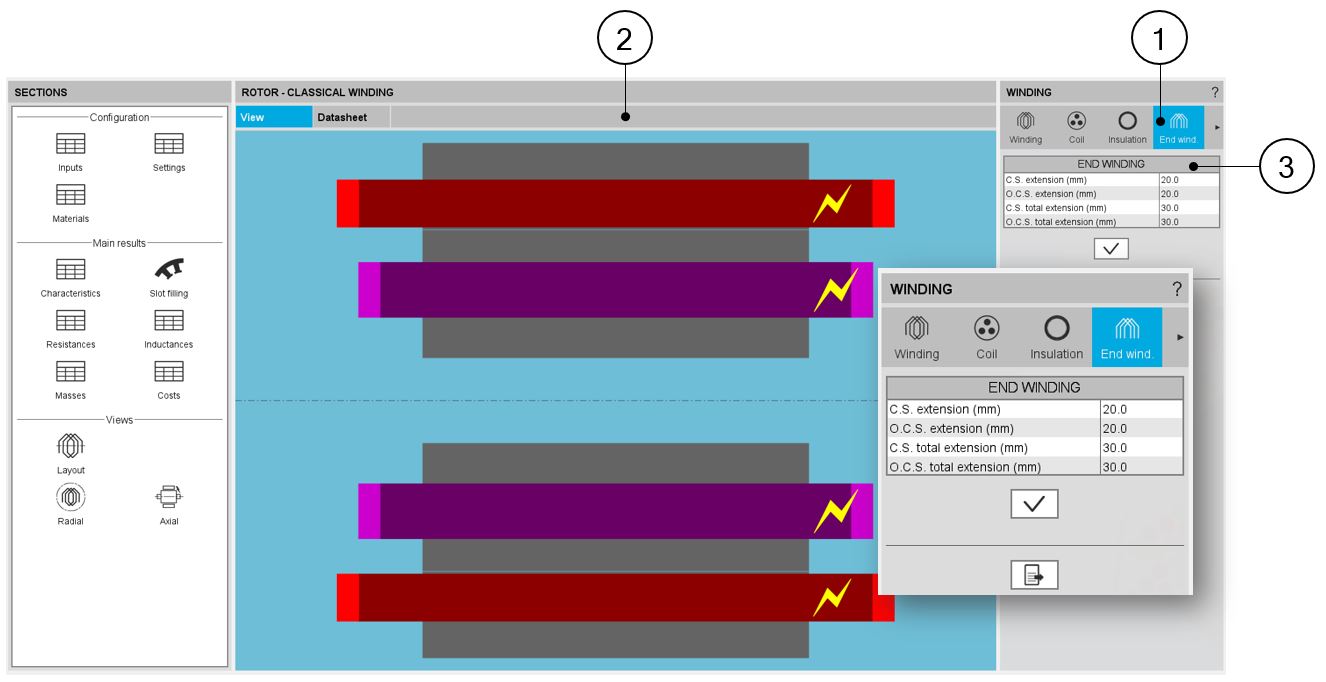

| Definition of the end winding | |
| 1 | End winding settings allow the user to describe the end winding dimensions. |
| 2 | The axial view of the machine allows to see each dimension change of the end winding; the Connection Side (C.S.) is indicated by the yellow lightning. |
| 3 | The parameters to adjust the end winding dimensions |
