SS-V: 2110 Cantilever with Off-Center Remote Mass
Test No. VM12 Find the frequencies of a cantilever with off center remote masses at the free end.
Definition

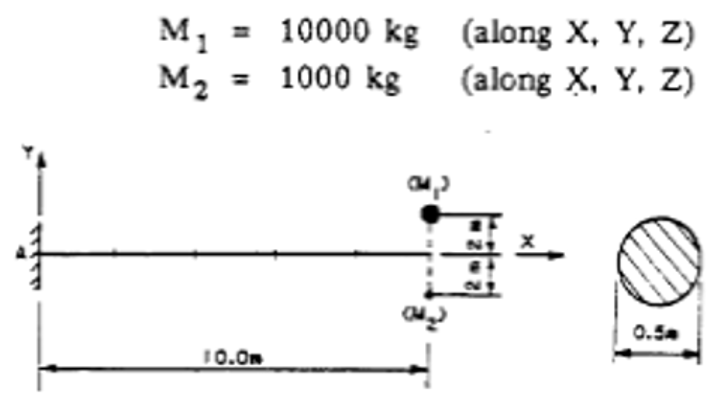

Figure 1.
Translations and rotations fixed at A.
The material properties are:
- Properties
- Value
- Young's Modulus
- 2e11 N/m2
- Poisson's Ratio
- 0.3
- Density
- 8000 Kg/m3
Results
The following table summarizes the modes.
| Reference1 | SimSolid | |
|---|---|---|
| Mode 1 | 1.723 | 1.723 |
| Mode 2 | 1.727 | 1.726 |
| Mode 3 | 7.413 | 7.396 |
| Mode 4 | 9.972 | 9.947 |
| Mode 5 | 18.155 | 18.034 |
| Mode 6 | 26.957 | 26.747 |
1 Test FV4 from
The Standard NAFEMS Benchmarks TNSB, Rev. 3, 5 October, 1990.
