SS-V: 1110 Notched Plate
Test No. VS12 Find Sx stress in the notch and top face of a notched plate.
Definition

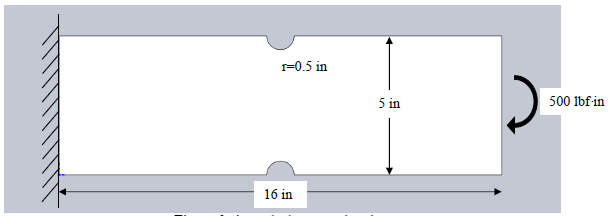

Figure 1.
The left face is fixed. The load is a moment of 500 lbf-in applied to right face.
The units are IPS.
The model parameters are:
- Parameters
- Value
- Length
- 16 in
- Width
- 5 in
- Plate thickness (r)
- 0.5 in
The material properties are:
- Properties
- Value
- Modulus of Elasticity
- 30e+6
- Poisson's Ratio
- 0.3
Results
The following table summarizes the
stress results.
| Reference Solution | SimSolid | % Difference | |
|---|---|---|---|
| SXX Stress in Notch [psi] | 7.3100E+02 | 7.6890E+02 | 5.18% |
| SXX Stress along top face [psi] | 2.4000E+02 | 2.4001E+02 | 0.00% |
1 LM-ST-1 Learning
Module Static Structural Analysis, Dr. Jack Xin, Dr. Liang-Wu Cai, www.femlearning.org,
2010
